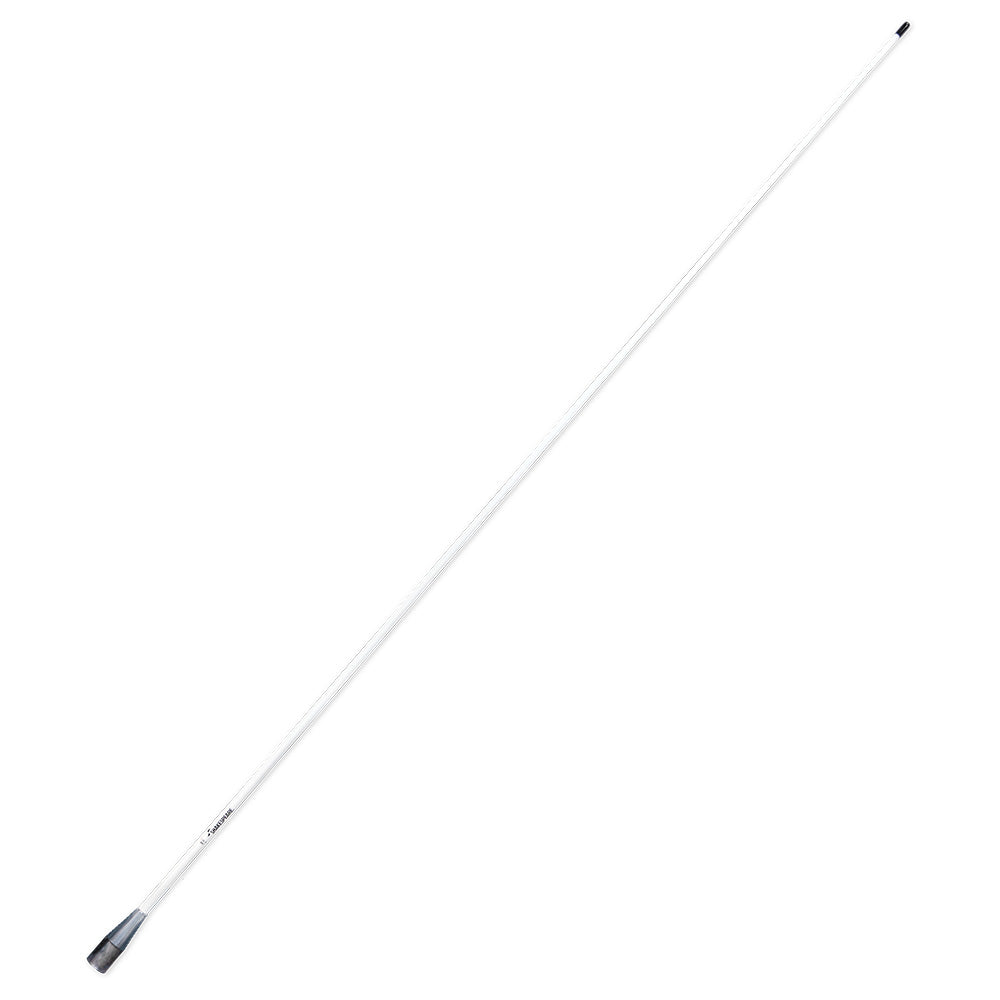

Shakespeare 396-1 5' VHF Antenna
Shakespeare 396-1 5' VHF Antenna

Shakespeare

Shakespeare 396-1 5' VHF Antenna

Part # CWR-10597
Barcode: 719441100018

$209.99

In stock
  • Secure checkout Payment details are encrypted.
  • Owned and operated in the United States

Accepted payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

  • Brass and copper elements

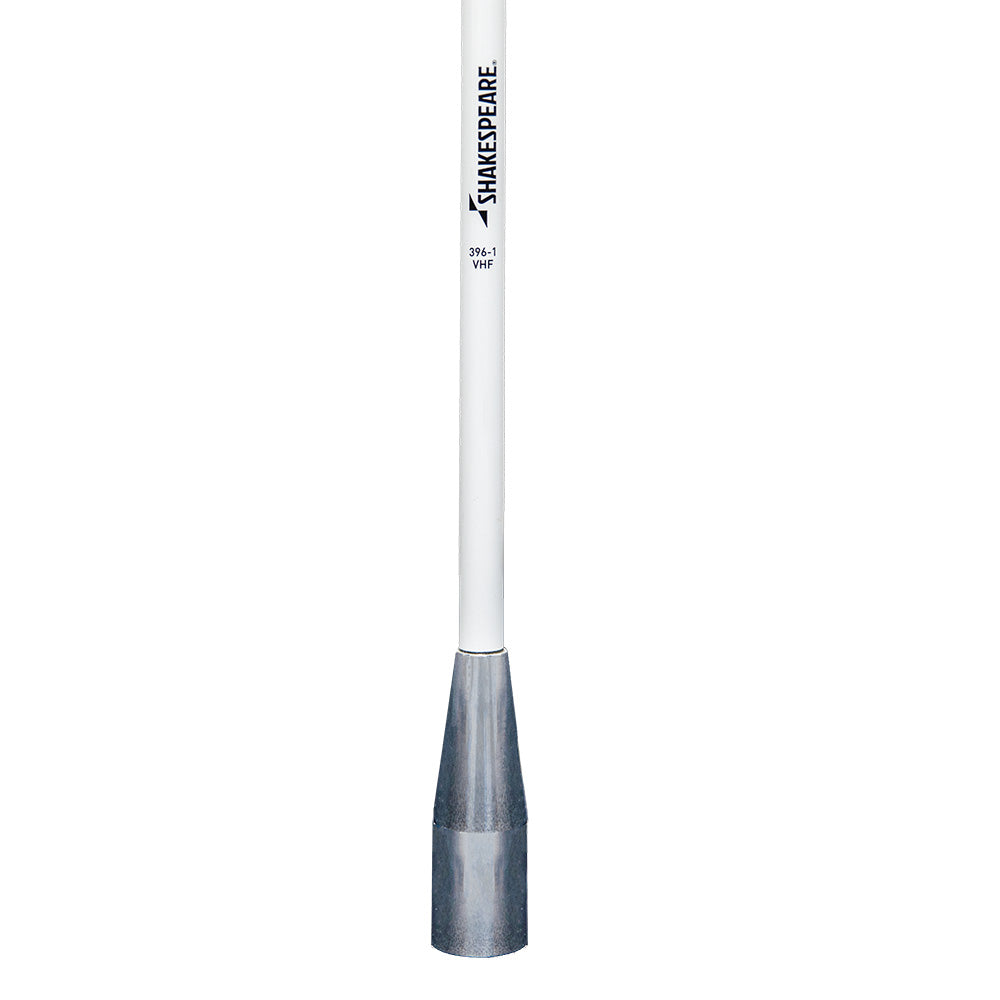

  • Chrome-plated brass ferrule with standard 1-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Style 4187 Ratchet Mount
  • One section

Technical Specifications:

Frequency:VHF Marine bandBandwidth:(within 2.0:1 SWR): 5 MHzSWR:1.5:1 at 156.8 MHzImpedance(Ohms): 50Gain:3 dBMax Input (Watts):50DC Ground:NOTermination:15' RG-58 cableHeight (feet):5Polarization:VerticalRadiation pattern:Omni-directional

Quick guide: https://productimageserver.com/literature/quickGuide/10597QG.pdf
