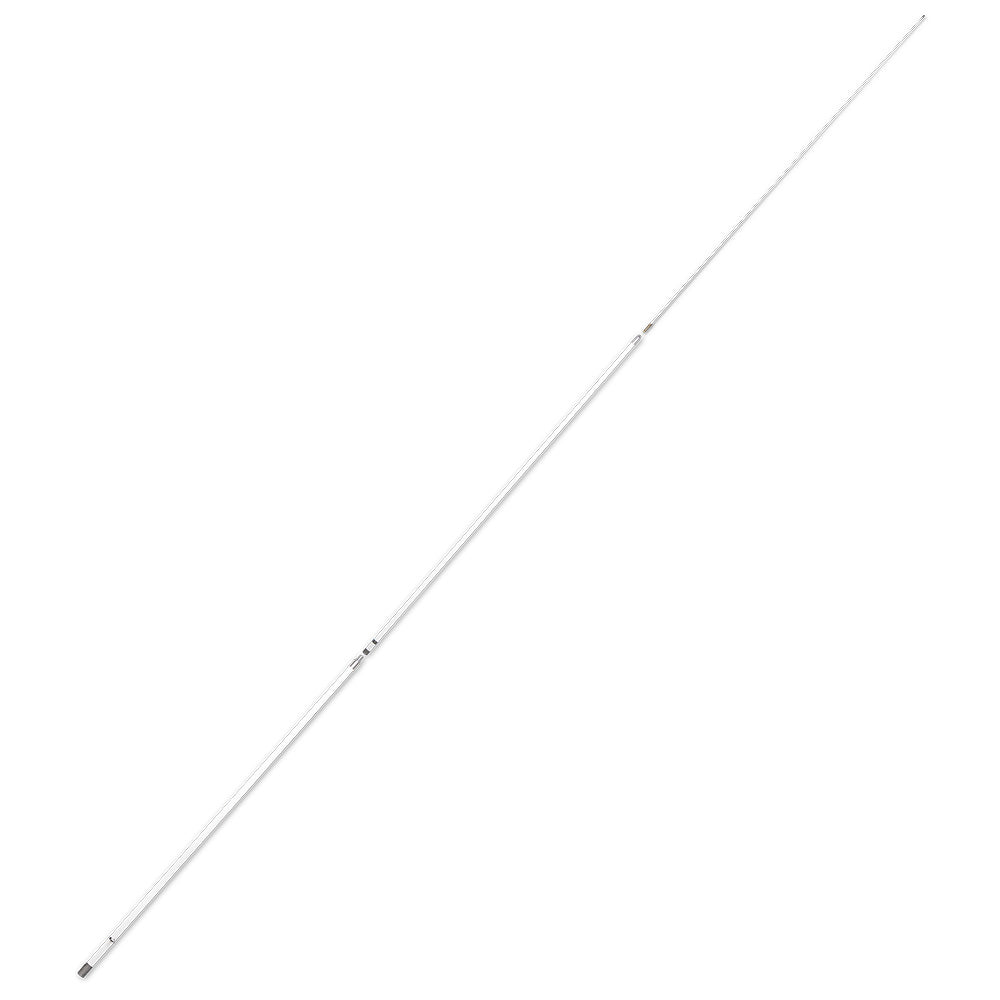

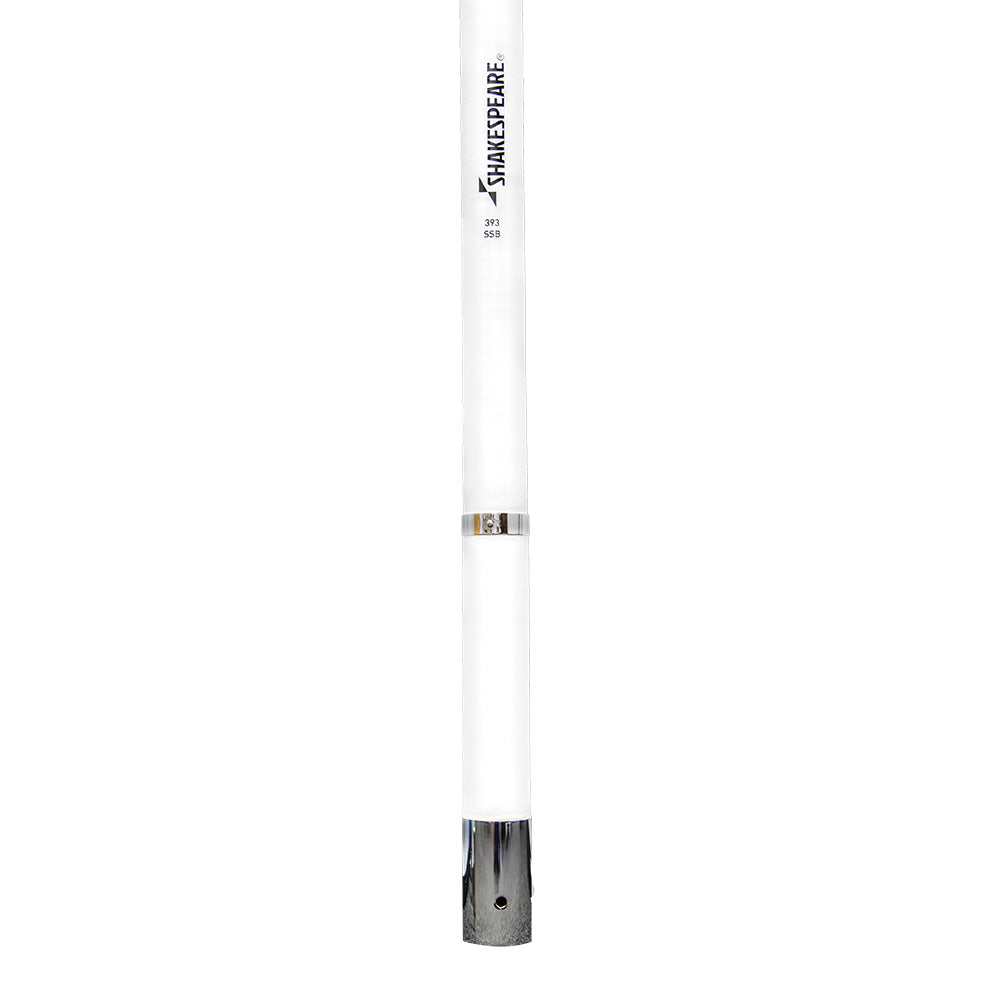

Shakespeare 393 23' Single Side Band Antenna

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

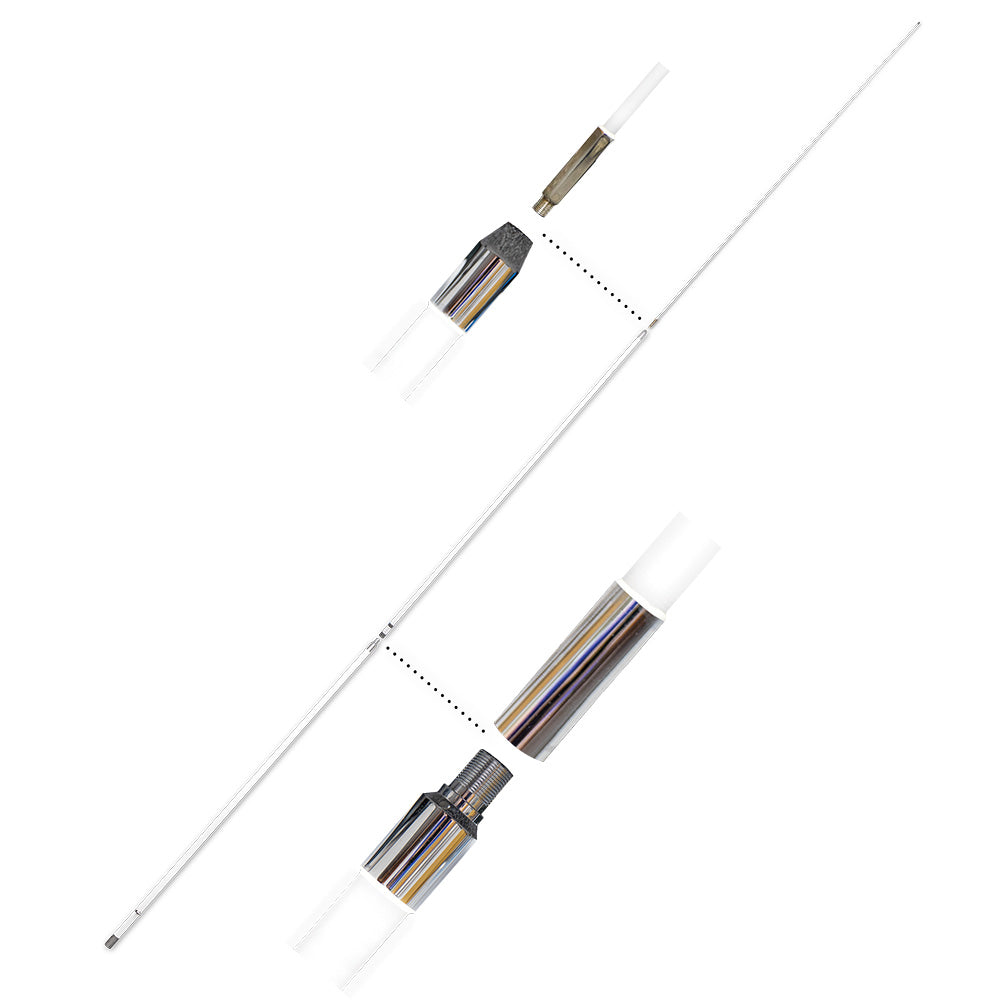

• Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread

• Side feed termination band

• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

• Three sections: Base 92"; Center 92"; Tip 92"

• Shakespeare Limited Warranty: 2 years

Technical Specifications:


Frequency:2-30 MHz HF band with tunerBandwidth:Resonant frequency 10.8 MHzSWR:N/AImpedance:(Ohms): N/AGain:N/AMax Input (Watts):1000DC Ground:N/ATermination:Side TerminationHeight (feet):23Polarization:VerticalRadiation pattern:Omni-directional

Quick guide: https://productimageserver.com/literature/quickGuide/10596QG.pdf
