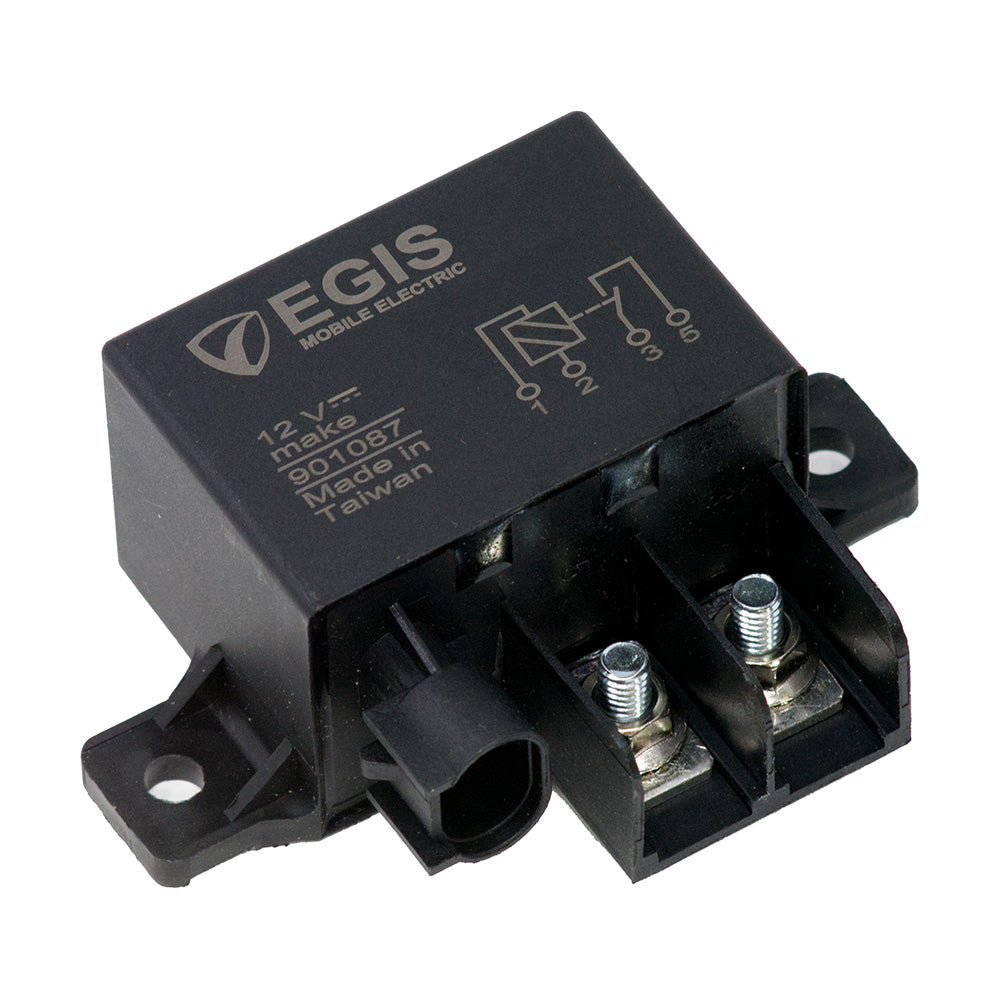

Egis Mobile Electric Relay 12V 150A w/Resistor

Relay 12V 150A with Resistor

This is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.

Features:

• Delphi Metripak connector built-in to the enclosure (sealed enclosure)

Specifications:

• Continuous Current @85C (Amps): 180
• Intermittent Current @85C (Amps): 240
• Minimum Operate Voltage (VDC): 7.2
• On-State Current Draw @12V (mA): 325
• Release Voltage (VDC): 2.2
• Switching Current @13.5 VDC (Amps): 300

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Installation guide: https://productimageserver.com/literature/installations/103443IN.pdf
