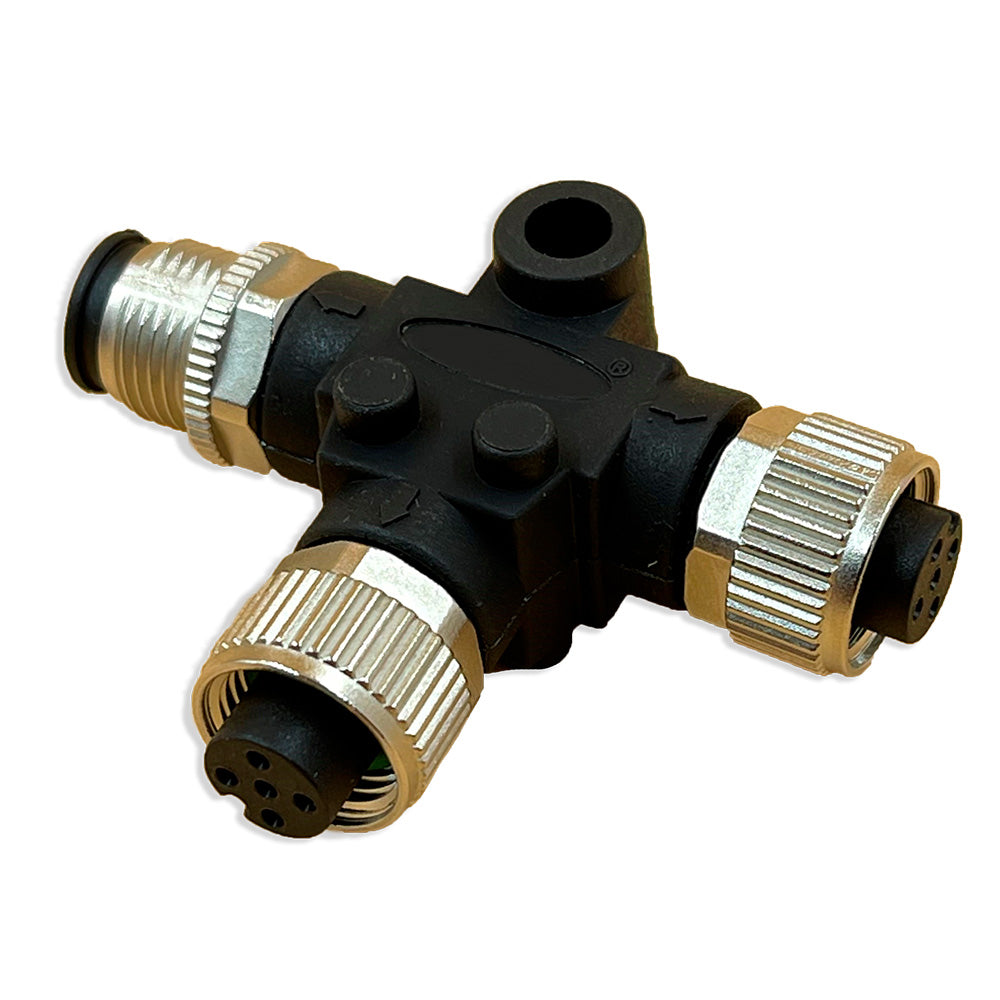

Digital Yacht NMEA 2000 T-Connector 1-Way Extension Block

NMEA 2000 T-Connector - 1-Way Extension Block

As the NMEA 2000 network expands beyond the 3-device limit of Digital Yacht’s NMEA 2000 Starter Kit, users can use one of these single T-pieces to add devices. With male > female > female connectors, multiple T-pieces can be plugged together or added to the 4-way T-piece included in the starter kit. The lower “drop cable” connector is female so that there are no exposed pins when the drop cable is removed.

*Digital Yacht can supply NMEA 2000 cables and connectors to expand the NMEA 2000 to whatever size is needed (up to the maximum 50 NMEA 2000 device limit).

Features:

• NMEA 2000 Single T-Piece
• Standard “Micro C” connectors make it very easy for future network expansion
• Metal connectors improve reliability
• Waterproof rating of IP68

Quick guide: https://productimageserver.com/literature/quickGuide/103379QG.pdf
