Newmar Power SS Switch 7.5 AC Selector Switch

SS Switch - 7.5 AC Selector Switch

This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.

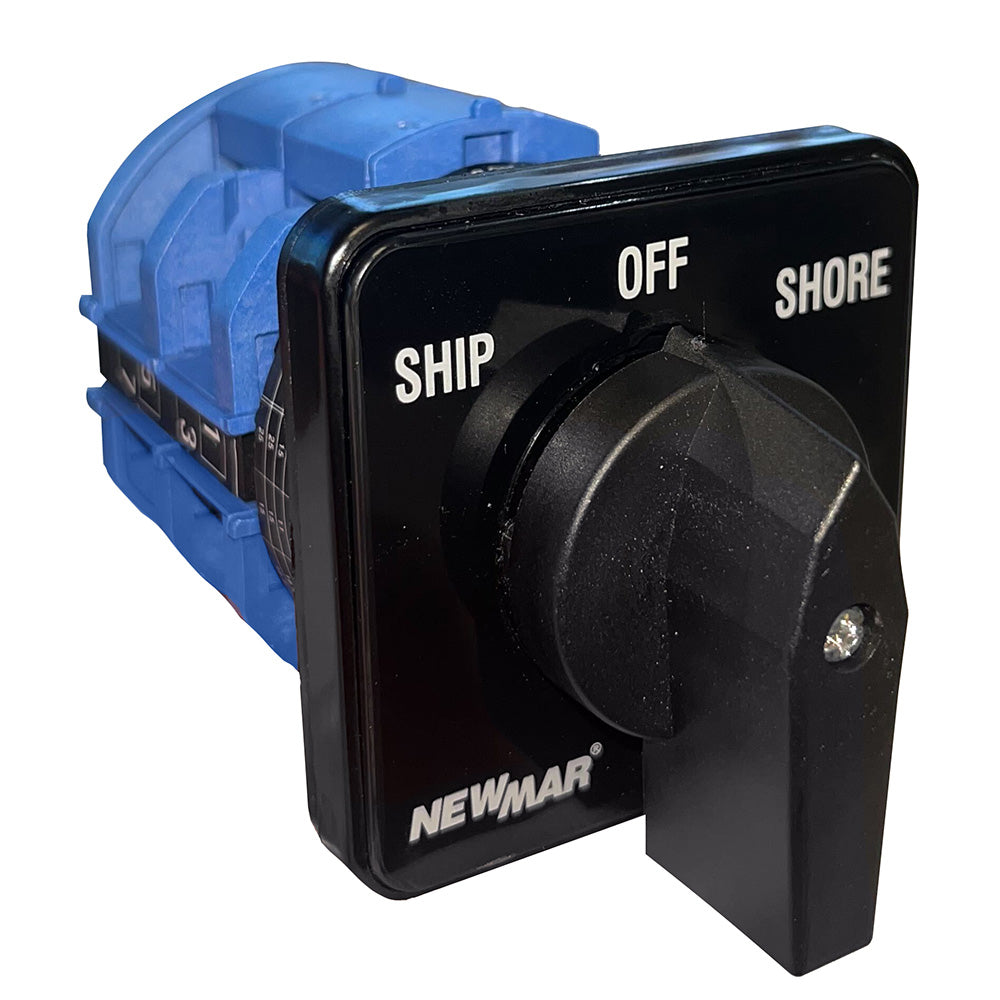

The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.

The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.

Features:

• Maybe rear-mounted in a panel with a thickness of up to 1/4”

Specifications:

• Amperage @ 115/230V: 63
• Number of Poles: 2
• Switch Positions: 2 + “OFF”
• Standard Plate Markings: SHIP-OFF-SHORE
• Depth Dimensions: 2-3/8 in.

Installation guide: https://productimageserver.com/literature/installations/102427IN.pdf
