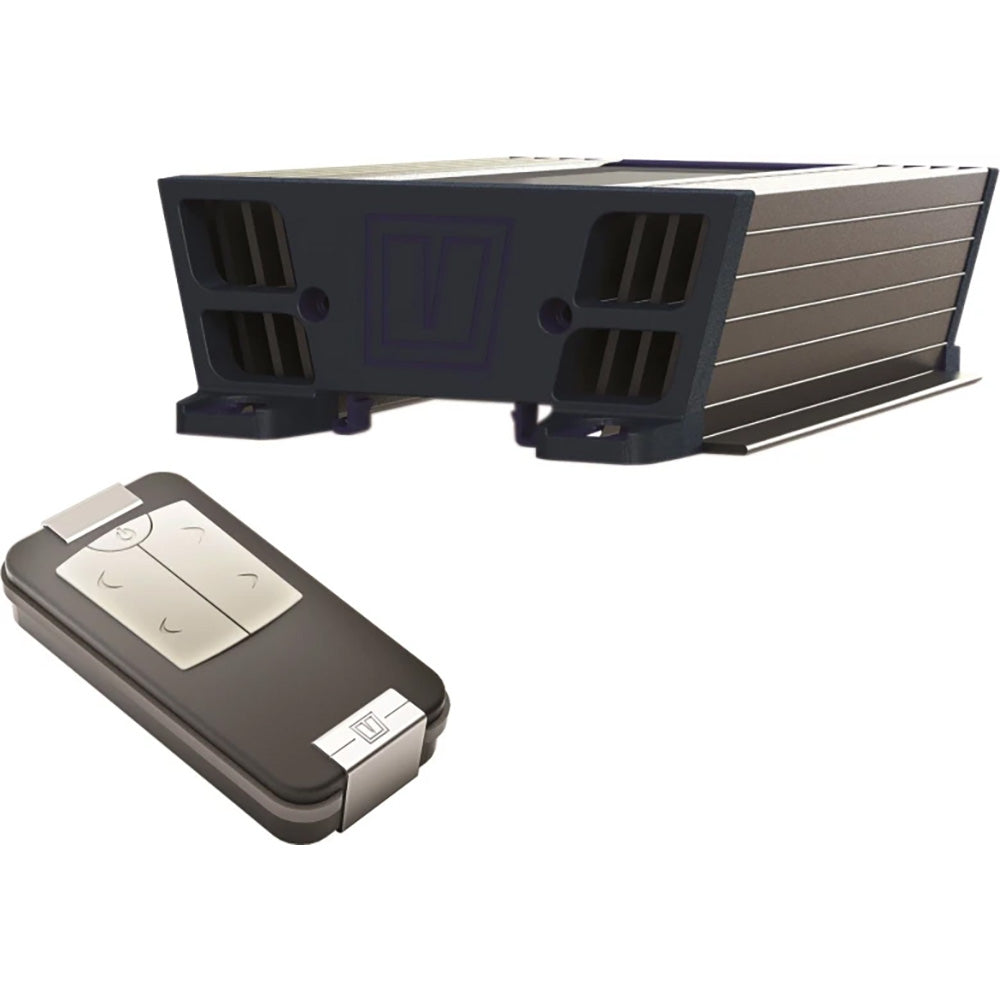

Vetus V-CAN Wireless Remote Controller f/V-CAN Thrusters & BOW PRO

V-CAN Wireless Remote Controller for V-CAN Thrusters & BOW PRO

This system gives boaters full control of their electrically driven equipment on board. It includes a base unit, one remote control, and two connection cables. The VETUS wireless control handheld remote has a range of 10 to 25 m, depending on the location of the receiver, and delivers easy control of V-CAN Thrusters and BOW PRO models. The wireless remote control meets the EMC requirements.

Features:

• For V-CAN Thrusters and BOW PRO models
• Connectors for two thrusters (4 channels)
• Open-air range is up to 10m
• Maximum range is up to 25m when unimpeded

Specifications:

Remote Control

• Power supply 3 VDC CR2032 (1x)
• Protection Class: IP66
• Frequency: 433.92 Hz
• Temperature Range: 0°C - 70°C (+32°F - 158°F)
• Weight: 50 g (2 oz)

Receiver

• Power Supply: 8 VDC to 30 VDC
• Maximum Current (per output): 8 A (at 30 Volts DC)
• Protection Class: IP40
• Frequency: 433.92 Hz
• Temperature Range: 0°C - 70°C (+32°F - 158°F)
• Weight: 800 g (28 oz)

Installation guide: https://productimageserver.com/literature/installations/101278IN.pdf
