Blue Seas Compact 6 Cir Fuse Blk

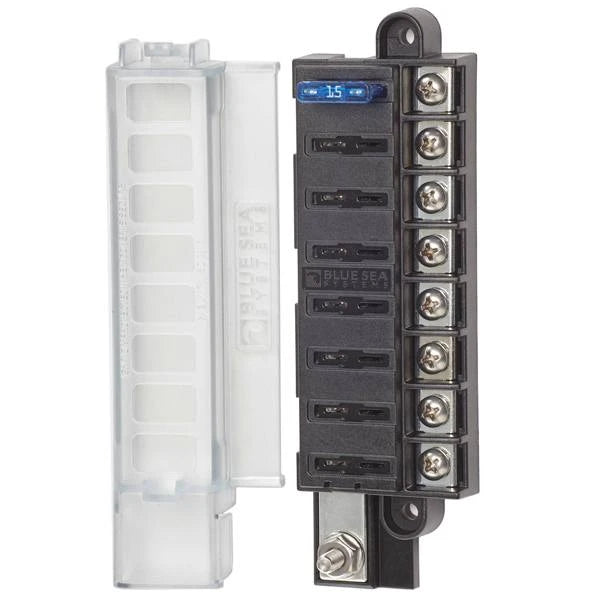

Blue Sea Systems ST Blade Compact 8 Circuit Fuse Block

Blue Sea Systems' Compact Fuse Blocks provide surface mount circuit protection for ATO/ATC fuses in a compact footprint. Includes a cover and eight write-on circuit labels. The insulating cover meets ABYC/USCG insulation requirements.

Ignition protected when cover is secure - meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

Single side design allows wire entry from one side to minimize footprint

Tin-plated copper buses and fuse clips

Accepts ring or snap fork type terminals

Includes 8 write-on circuit labels

Fuses sold separately

Specifications:

Circuits: 8

Maximum Amperage: 100A per block | 30A per circuit

Maximum Voltage: 32V DC

Mounting: #8 Screw

Terminal Stud Torque: 24 in-lb

Screw Terminal Torque: 15 in-lb

Screw Terminal Type: #8-32 Screws with captive star lock washer

Terminal Stud Size: #10-32

Weight: 0.40lb
