Stingray Hydrofoils

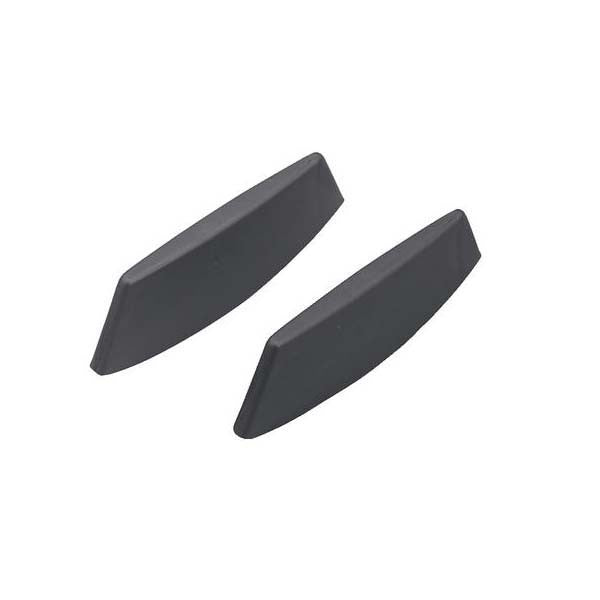

Torque Equalizer attaches to any Sting Ray and Sting Ray Junior Hydrofoil Stabilizer to neutralize propeller steering torque. Performs like miniature rudders helping boat track straight & minimizing propeller's natural pull to the right. Reduces steering effort for the driver.

All boats react to propeller rotation causing a dangerous pull to one direction of the other. Fighting it can be very tiring to the boat’s driver. StingRay provides the solution with Torque Equalizers.

StingRay Torque Equalizers, when placed on a StingRay Classic Senior or Junior, will reduce or completely eliminate dangerous steering torque on all boats. With a StingRay Hydrofoil Stabilizer and Torque Equalizers, boats track straight, are easier to control, safer to handle, and the driver’s arm won’t tire out after a day on the water.

By adjusting in 10 degree increments on the underside of the wings, Torque Equalizers provide superior leverage over auxiliary wedges or center mounted sacrificial anode torque tabs. In comparison, other solutions don’t work nearly as well.

After one ride you’ll know why Torque Equalizers are the premier solution for correcting bothersome steering torque.

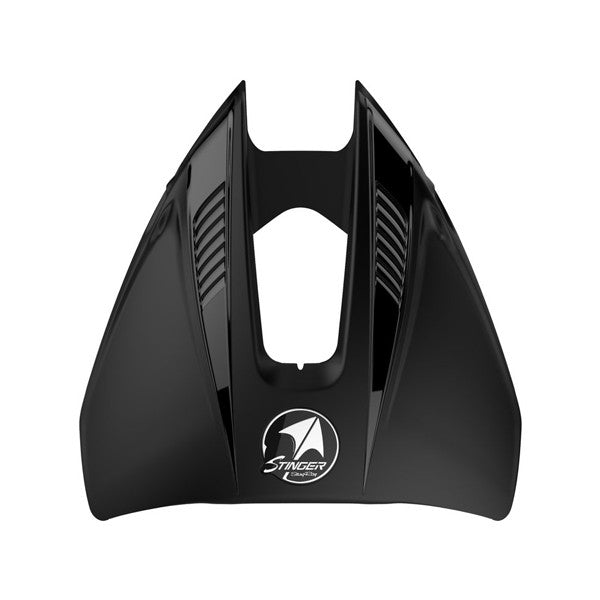

Stingray Stinger Hydrofoil

The Stingray Stinger Hydrofoil offers maximum performance with its latest design and styling. It is designed to provide significant lift to smaller boats and engine setups while providing larger boats and engine setups with improved holeshots and maximum top-end speed. By reducing chinewalking, porpoising, cavitation, and ventilation and by increasing visibility at lower speeds, this hydrofoil saves fuel and promotes safety.

Features:

Improves Holeshots

Reduces Chinewalking, Porpoising, Cavitation, and Ventilation

Saves Fuel

Get Boats On Plane Quicker

Promotes Safety By Increasing Visibility At Lower Speeds

Keeps Boats On Plane At Lower Speeds

Maximizes Stabilization

Specifications:

Application/HP Fit: 4-300 (Drill Installation Under 40hp)

Color: Black

Click Here to Download Stingray Stinger Installation Instructions.

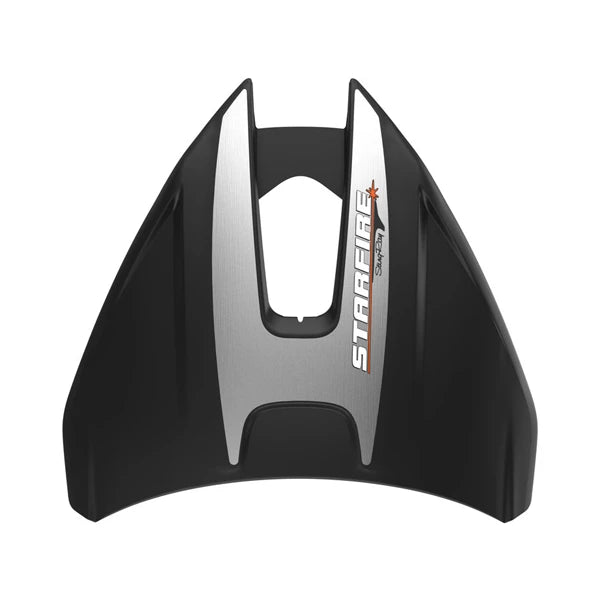

Stingray Starfire Hydrofoil

The Stingray Starfire Hydrofoil is designed to enhance stabilization while on the plane through extending its wing tips. It is built to reduce drag and maximize top-end speed by inverting its trailing edge. With a simple and quick installation, this hydrofoil promotes safety by increasing visibility at lower speeds. Saving fuel and reducing chinewalking, porpoising, cavitation and ventilation, it will provide maximum performance every time.

Features:

Maximizes Stabilization

Reduces Chinewalking, Porpoising, Cavitation and Ventilation

Saves Fuel

Improves Holeshots

Gets Boats On Plane Quicker

Simple and Quick Installation

No-Drill Installation

Promotes Safety By Increasing Visibility At Lower Speeds

40HP To 300HP Engines

Best Top End Speed

Specifications:

Application/HP Fit: 40-300 (NO-Drill / Optional-Drill Installation)

Color: Black

Click here to download Installation Instructions.

Frequently Asked Questions

• What does the Stingray Starfire Hydrofoil do? The Stingray Starfire Hydrofoil is designed to enhance stabilization while a boat is on plane. It can help reduce chinewalking, porpoising, cavitation, and ventilation while improving holeshots and helping boats get on plane quicker. Its design also aims to reduce drag and maximize top-end speed.
• What horsepower engines does the Stingray Starfire Hydrofoil fit? The Stingray Starfire Hydrofoil is specified for engines from 40 HP to 300 HP. The application specification lists a 40-300 HP fit with either no-drill or optional-drill installation.
• Does the Stingray Starfire Hydrofoil require drilling for installation? The Stingray Starfire Hydrofoil supports no-drill installation, with optional-drill installation also listed in the application specifications. The product description describes the installation as simple and quick.
• Can the Stingray Starfire Hydrofoil help a boat get on plane quicker? Yes. The Stingray Starfire Hydrofoil is designed to improve holeshots and help boats get on plane quicker. It is also intended to enhance stabilization while on plane and reduce chinewalking, porpoising, cavitation, and ventilation.
• How can the Stingray Starfire Hydrofoil improve boat performance? The Stingray Starfire Hydrofoil is designed to reduce drag and maximize top-end speed by inverting its trailing edge. It is also intended to save fuel, improve holeshots, enhance stabilization, and reduce chinewalking, porpoising, cavitation, and ventilation.
• What color is the Stingray Starfire Hydrofoil? The Stingray Starfire Hydrofoil is black. Its application and horsepower fit is listed as 40-300 HP with no-drill or optional-drill installation.

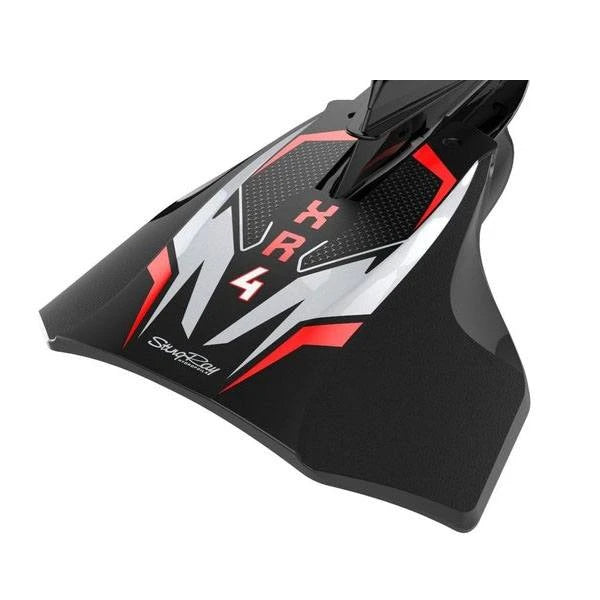

Stingray XR4 Hydrofoil Boat Stabilizer

Improve your boat's lift and holeshot with the StingRay XR4 Hydrofoil. The XR4 is designed to provide maximum lift, blast boats out of the hole quicker than ever before, and keep boats on plane at lower speeds. The result? Increased safety and significant fuel savings. This hydrofoil reduces and eliminates porpoising, chinewalking, cavination, and ventilation, stabilizing the boat and providing a more comfortable ride.

Benefits for different styles of boats

For boats pulling tubers, skiers, or wakeboarders, the StingRay XR4 helps pull them up quicker and smooths out the wake for more enjoyable towing. It also helps increase driver visibility by getting the bow of the boat down sooner. Heavy runabouts and center console boats can benefit from the maximum lift provided by the XR4 Hydrofoil. The downturned wings also pack water tightly around the prop, making this an ideal solution for boats experiencing cavitation problems - a common issue found on pontoon and tritoon boats.

Next-gen styling and technology

The XR4 Hydrofoil is equipped with a next-gen graphics package that provides the most advanced graphics in the industry while complementing the styling found on new outboard engines. The 2-bolt installation method is the industry's most secure and easiest installation, giving you confidence and peace of mind on the water. The XR4 Hydrofoil is guaranteed to never come off your engine. Engineered with the very latest in hydrofoil technology, the StingRay XR4 provides top-notch performance enhancement, next-gen styling, and pays for itself in fuel savings.

Features:

Gets boats on plane quicker

Keeps boats on plane at lower speeds

Improves holeshots

Maximizes stabilization

Promotes safety by increasing visibility at lower speeds

Reduces chinewalking, porpoising, cavitation, and ventilation

1 Year warranty

Specifications:

HP Range: 40-300 HP

Left Level: 3-Maximum

Installation Type: 2-Drill

Color: Black

How to Install a StingRay XR4 Hydrofoil:

• WARNING: WITH ALL ENGINE INSTALLATIONS, ENSURE BOAT ENGINE IS OFF, KILL SWITCH IS DISENGAGED, AND GEAR SHIFT IS IN NEUTRAL POSITION.

Make sure all installation hardware is included: two (2) nylon hex nuts, two (2) stainless bolts, (2) stainless washers

Slide the StingRay XR4 Hydrofoil onto the cavitation plate as far forward as possible with the colored graphics side facing upwards.

Using a drill and 1/4" bit, drill through the cavitation plate using the two holes on the top side of the hydrofoil as a guide.

make sure to keep the drill perpendicular to the cavitation plate while drilling.

Place the stainless steel bolts through the holes on the top of the XR4 Hydrofoil and attach a flat washer and nylon nut to each bolt from the underneath side of the hydrofoil.

Using a Philips Head screwdriver and a 7/16" socket and ratchet, secure the bolts by tightening the nylon lock hex nuts.

BEFORE OPERATING, check the propeller clearance by slowly turning the propeller by hand to make sure there is no interference between the hydrofoil and propeller.

Notice:

• (1)  This product should make an immediate performance improvement in your boat/motor…if for ANY REASON it does not, then remove this product and utilize the Customer Contact Form on StingRay's website (www.StingRayHydrofoil.com) for assistance. (2)  Any surface “flow marks” around holes that appear to be cracks are a normal part of the molding process and do not affect the part strength or performance.
• Frequently Asked Questions
• What does the StingRay XR4 Hydrofoil Boat Stabilizer do? The StingRay XR4 Hydrofoil is designed to improve boat lift and holeshot performance, helping boats get on plane quicker and stay on plane at lower speeds. It also helps stabilize the boat by reducing porpoising, chinewalking, cavitation, and ventilation for a more comfortable ride. What outboard motors is the StingRay XR4 Hydrofoil compatible …

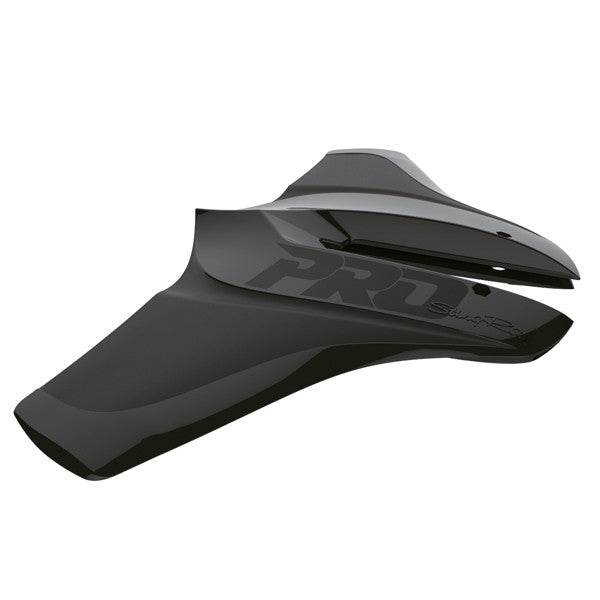

Stingray Classic Pro Hydrofoil Boat Stabilizer

The StingRay Classic Pro Hydrofoil has been technologically refined to enhance performance while minimizing installation effort. This boat stabilizer features expansive wings the provide maximum lift and stabilization. The Classic Pro delivers exceptional holeshots without restraining top-end performance. With a StingRay Classic Pro Hydrofoil installed, boaters will experience increased performance, monetary savings, and most importantly: a safer ride.

HP Range: 40-300

Key Features:

Gets boats on plane quicker

Keeps boats on plane at lower speeds

Improves holeshots

Maximizes stabilization

Saves fuel

Promotes safety by increasing visibility at lower speeds

Reduces chinewalking, porpoising, cavitation, and ventilation

Click to Download StingRay Classic Pro Hydrofoil Installation Instructions

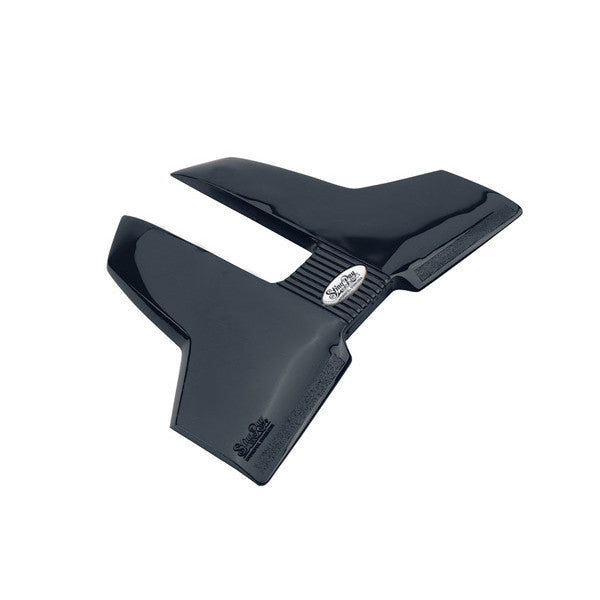

Stingray Junior Hydrofoil Boat Stabilizer

The Stringray Junior Hydrofoil was designed to satisfy the market demand for a versatile hydrofoil capable of fitting engine sizes as small as 9.9 HP that are found on inflatables, smaller tenders, and jon boats. The Stringray Junior provides smaller boats with small engines the ability to get on plane quicker and experience the performance benefits of a hydrofoil stabilizer. Its high-tech shape directs water over the surface to create just the right lift for small boats. The result is smoother stability, more control, improved fuel economy, better speed, and an improved ride. The Stringray Jr. also uses its wings to stabilize your boat, eliminating side-to-side rocking.

The Stringray Junior Hydrofoil is quick and easy to install. It comes with all necessary hardware for installation and only requires four holes to be drilled. The Junior Hydrofoil comes pre-assembled as one unit, and can be adjusted to fit a smaller engine size.

Features:

Gets boats on plane quicker

Keeps boats on plane at lower speeds

Improves holeshots

Maximizes stabilization and saves fuel

Promotes safety by increasing visibility at low speeds

Reduces chinewalking, porpoising, cavitation, and ventilation

Specifications:

HP Range: 9.9 - 40

Lift Level: Average

Color: Black

How to Install a Stringray Junior Hydrofoil

WARNING: WITH ALL ENGINE INSTALLATIONS, ENSURE BOAT ENGINE IS OFF, KILL SWITCH IS DISENGAGED, AND GEAR SHIFT IS IN NEUTRAL POSITION.

The StingRay Classic Junior can be reduced in width to provide a better fit to smaller cavitation plates. To reduce the hydrofoil width, use a Phillips screwdriver to remove the screw in the back of the hydrofoil, separating the StingRay Classic Junior into two parts. The hydrofoil is designed to be shortened in ¼ inch increments. Both pieces should be cut the same amount of times to ensure the proper fit. After the width is reduced, use a Phillips screwdriver to reattach both pieces together with the included screw.

*Not all StingRay Classic Juniors need to be cut and reduced in width. This process is only necessary for boats with smaller cavitation plate widths.

Make sure all installation hardware installation hardware is included: four (4) bolts, four (4) self-locking nuts, and four (4) rubber washers.

Place the StingRay Classic Junior on cavitation plate as far forward as possible while keeping the underside of the hydrofoil flush with the cavitation plate.

Drill four (4) quarter-inch holes in the cavitation plate on the lower drive unit and bolt the StingRay on.

The pre-drilled holes in the StingRay serve as a guide for drilling the four holes.

After drilling the four holes, remove the hydrofoil and place the four (4) rubber washers around the pre-drilled holes on the underneath side of the hydrofoil.

With all four (4) rubber washers attached, place the StingRay Classic Junior back onto the cavitation plate and line up with the four (4) drilled holes from step 3.

Place the four (4) self-locking nuts in the pre-drilled holes in the StingRay Classic Junior. The white side of the nuts should be facing upwards.

Insert the four (4) bolts from the bottom up, with the shorter bolts inserted in the two holes in the front of the hydrofoil.

Use a Phillips screwdriver to tighten the bolts. In a matter of minutes you’re ready to enjoy unmatched performance!

Notice:

• (1)  This product should make an immediate performance improvement in your boat/motor…if for ANY REASON it does not, then remove this product and call (913) 451-1090 for assistance. (2)  Any surface “flow marks” around holes that appear to be cracks are a normal part of the molding process and do not affect the part strength or performance.
• Click to Download Stingray Classic Junior Hydrofoil Installation Instructions

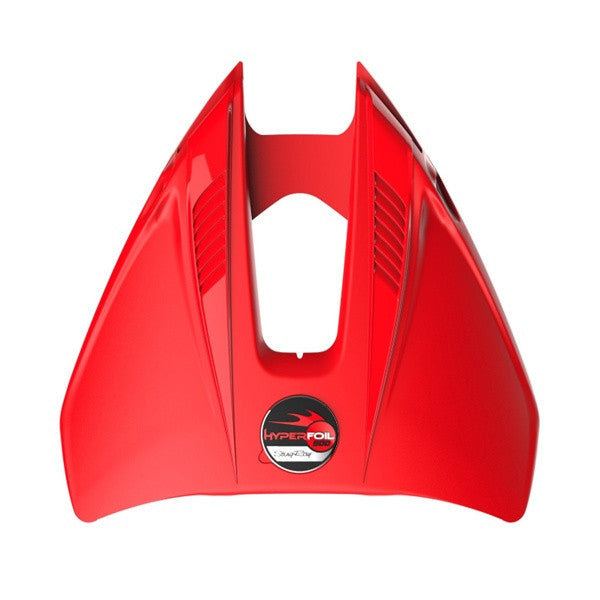

Stingray Hyperfoil 500

The Stingray Hyperfoil 500 is designed to provide vertical lift and unrestrained top-end speed. Its patented no-drill technology requires zero holes for installation and its proprietary hyperspeed red material reduces drag while also providing increased visibility for the engine's lower unit both in water and during transport. With a luxurious chrome badge, this hyperfoil is perfect for the professional bass boater.

Features:

Maximizes Top-End Speed

Patented No-Drill Technology Requires Zero Holes For Installation

Proprietary HyperSpeed Red Material Reduces Drag

Eliminates Porpoising, Cavitation, Ventilation and Chine Walking

Unleashes The Top-End Potential Of Your Bass Boat

Increased Visibility

Luxurious Chrome Badging

Saves Fuel

Achieve Perfect Hole Shots

Provides More Vertical Lift

Designed For Professional Bass Boater

Specifications:

Application/HP Fit: 4-300 (Drill-Installation Under 40hp)

Color: Red

Click here to download Installation Instructions.

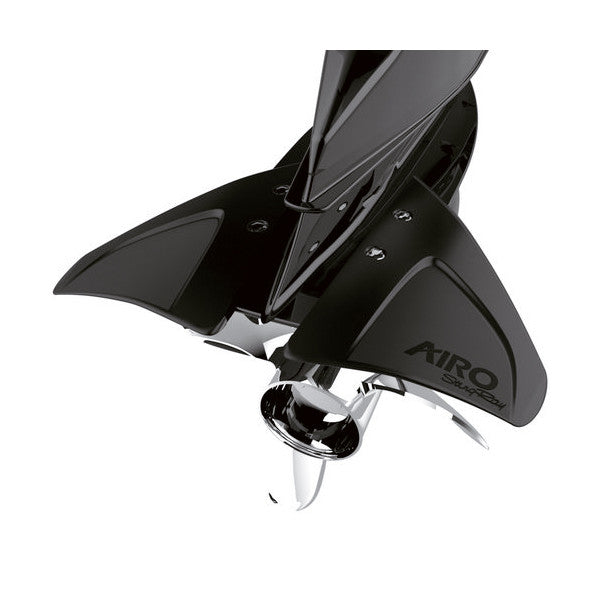

Stingray AIRO Hydrofoil 2-Piece Boat Stabilizer

The Stingray AIRO Hydrofoil is a versatile, 2-piece hydrofoil capable of fitting engine sizes as small as 4 HP while still benefiting larger engines. This economical hydrofoil can be used with engines found in inflatables, smaller tenders, and jon boats, as well as engines up to 350 HP. Hydrofoils are designed to get boats on plane quicker and keep them on plane at lower speeds. This results in increased stabilization and visibility at lower speeds. With the Stingray AIRO installed, boaters will experience increased performance, monetary savings, and a safer ride.

Features:

Fits engine sizes as small as 4 HP

Gets boats on plane faster

Keeps boats on plane at lower speeds

Improves holeshots

Maximizes stabilization

Promotes safety by increasing visibility at lower speeds

Reduces chainwalking, porpoising, cavitation, and ventilation

Specifications:

HP Range: 4 - 350 HP

4-Drill installation

Lift Level: 1 (Average)

Color: Black

Note for installation: The Stingray AIRO Hydrofoil is a two piece hydrofoil and includes a left and a right hydrofoil wing. The right hydrofoil wing includes the Stingray AIRO logo on the top surface, and the left hydrofoil wing is blank on the top surface. You will need an electric drill and Phillips head screwdriver for installation.

Click Here to Download Stringray AIRO Hydrofoil Installation Instructions
