Marinco

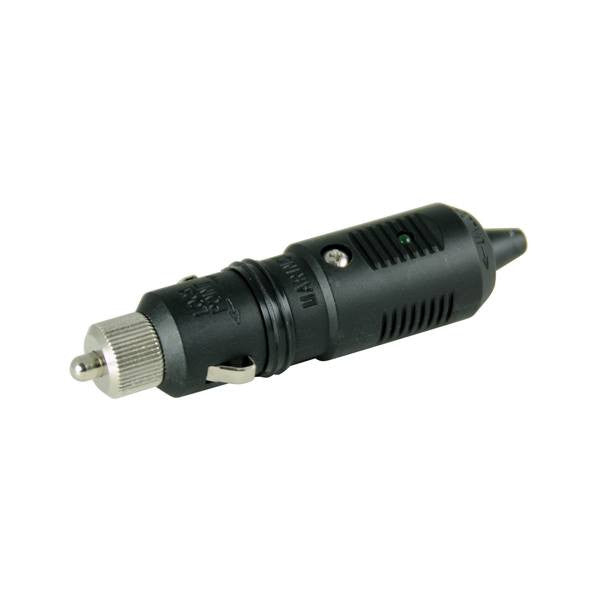

Marinco Sealink Deluxe 12 Volt Plug

Moisture proof sealing ring.

LED power indicator light.

Interchangeable 10A fuse.

Internal strain relief and cord seal.

Compatible with standard 12V receptacles.

Max. rating is 10 amps.

Product Features:

The Sealink 12 Volt family of products are manufactured from corrosion resistant marine grade materials.

Exclusive to Sealink products is a unique interconnecting system that securely locks the plug into the receptacle resulting in a positive and moisture proof connection.

The plug and receptacle feature optimized metal connection points for maximum conductivity.

Sealink Deluxe 12 Volt Receptacle & Plug packaged together.

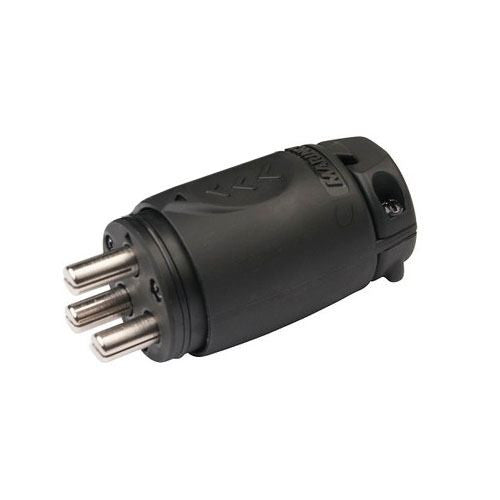

Marinco 12VCPS3 70A Trolling Motor Plug

The Marinco 70A trolling motor plug features a compact design for modern trolling motors. The universal design allows for the plug to be used with 2 or 3 wires, 12V, 24V, 12/24V, 24/36V/ or even 48V systems. Weather resistant seals protect the electrical contacts from corrosion and water. A floating pin design is utilized for maximum connectivity. Contains integrated strain relief with a keyed design. The plated brass electrical contacts helps protect from corrosion.

Features:

Accepts 6 & 8 AWG wire

Weather resistant seals.

Universal design

Plated Brass contacts

Floating pin design

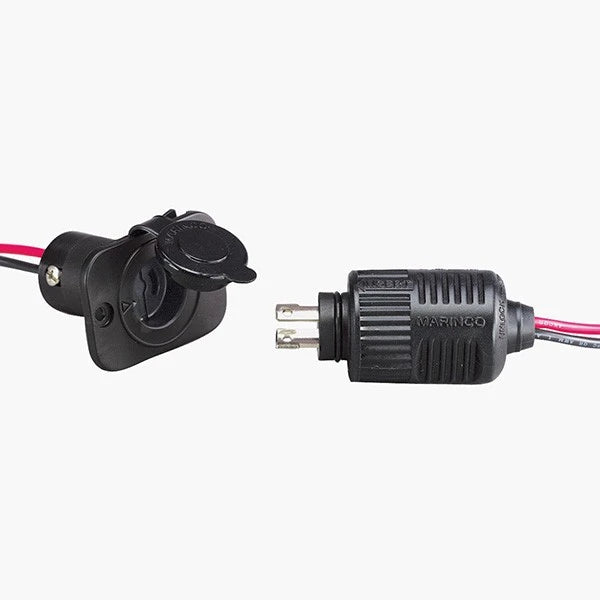

Marinco Connect Pro 2-Wire Receptacle and Plug

Marinco's Connect Pro system has superior electric current carrying capacity that eliminates problems that rob motors of power and reduce battery life. The ConnectPro system features locking plug and receptacle and spring clamping connection, which provides a secure electrical contact.

Included is both the Connect Pro Plug and Connect Pro Receptacle. The Connect Pro 2-Wire Receptacle works with 12V, 24V, or 36V 2-wire systems. This receptacle features a weather resistant sealing cap and drain holes to keep water away from electrical components.

Receptacle Features:

Works with 12V, 24v or 36V 2-wire systems

For front mount panel installations

Weather resistant sealing cap

Drain holes in receptacle keep water away from electrical components

Perma-Lock screw terminals will not loosen under extreme hull vibration

Fits standard 1-1/8" diameter mounting hole

Accepts up to 10 AWG wire

The Connect Pro 2-Wire Plug accepts 16 to 10 AWG wire. This plug has a max raing of 40 amps and features an o-ring seal for waterproof connections. Built to last, this plug has corrosion resistant, plated brass electrical components.

Plug Features:

O-ring seal for waterproof connections

Weather resistant plug cover

Corrosion resistant, plated brass electrical components

Accepts 16 to 10 AWG wire

Ergonomic contoured grip for easy hook-up and ground blade alignment

Max rating is 40 amps

Frequently Asked Questions

• What is the Marinco Connect Pro 2-Wire Receptacle and Plug used for? The Marinco Connect Pro 2-Wire Receptacle and Plug provides a locking electrical connection for 12V, 24V, or 36V 2-wire systems. The set includes both the Connect Pro plug and receptacle, which use spring clamping connections for secure electrical contact.
• What voltage systems does the Marinco Connect Pro 2-Wire Receptacle support? The Connect Pro 2-Wire Receptacle works with 12V, 24V, or 36V 2-wire systems. It is designed for front-mount panel installations and fits a standard 1-1/8-inch diameter mounting hole.
• What size wire does the Marinco Connect Pro 2-Wire Receptacle accept? The Connect Pro 2-Wire Receptacle accepts wire up to 10 AWG. It also features Perma-Lock screw terminals designed not to loosen under extreme hull vibration.
• Is the Marinco Connect Pro 2-Wire Receptacle weather resistant? Yes. The receptacle has a weather-resistant sealing cap and drain holes designed to keep water away from electrical components. The Connect Pro system also uses a locking plug and receptacle for a secure connection.
• What wire sizes does the Marinco Connect Pro 2-Wire Plug accept? The Connect Pro 2-Wire Plug accepts 16 to 10 AWG wire. It has a maximum rating of 40 amps and features corrosion-resistant, plated brass electrical components.
• What features does the Marinco Connect Pro 2-Wire Plug have? The plug features an O-ring seal for waterproof connections, a weather-resistant plug cover, and an ergonomic contoured grip. The grip also helps with hook-up and ground blade alignment, while the plated brass electrical components provide corrosion resistance.

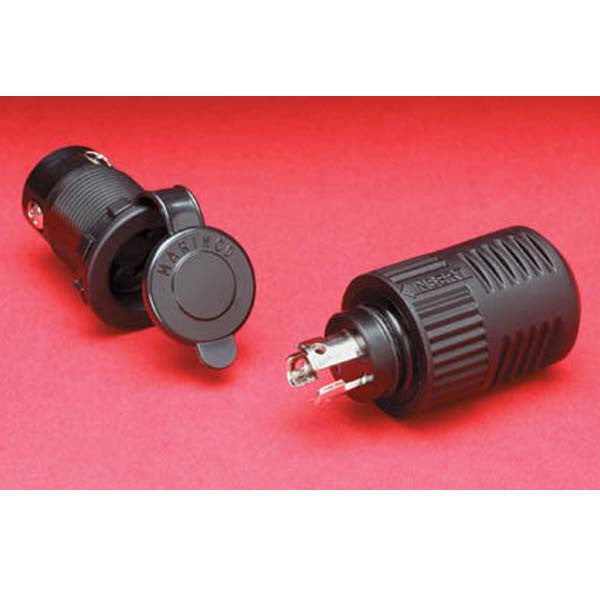

Marinco's ConnectPro 3-Wire Receptacle & Plug

12VBR and 12VBP packaged together.

Product Features:

Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36, or 36 volt system.

Watertight sealing cap.

Corrosion resistant, plated brass electrical components.

Drain holes in receptical keep water away from electrical components.

Perma-Lock screw terminals will not loosen under extreme hull vibration.

Standard 1-1/8" diameter mounting hole

Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation.

Accepts 10 and 8 guage wire.

Easily replaces other trolling motor plugs and receptacles.

Marinco's ConnectPro Plug

Product Features:

O-ring seal for waterproof connections

Weather resistant plug cover

Corrosion resistant, plated brass electrical components.

Accepts 16 to 18 gauge wire.

Ergonomic contoured grip for easy hook-up and ground blade alignment.

The Sealink 12 Volt family of products are manufactured from corrosion resistant marine grade materials.

Exclusive to Sealink products is a unique interconnecting system that securely locks the plug into the receptacle resulting in a positive and moisture proof connection.

The plug and receptacle feature optimized metal connection points for maximum conductivity.

Sealink Deluxe 12 Volt Receptacle & Plug packaged together.

Frequently Asked Questions

• What is the Marinco ConnectPro 3-Wire Receptacle & Plug used for? The Marinco ConnectPro 3-Wire Receptacle & Plug provides a locking electrical connection for compatible trolling motor applications. The packaged set includes the 12VBR receptacle and 12VBP plug and supports 2- or 3-wire configurations for 12, 24, 12/24, 24/36, or 36 volt systems.
• What voltage systems does the Marinco ConnectPro 3-Wire Receptacle support? The receptacle has a universal design for 2- or 3-wire configurations and supports 12V, 24V, 12/24V, 24/36V, or 36V systems. It accepts 10 and 8 gauge wire and fits a standard 1-1/8-inch diameter mounting hole.
• How does the Marinco ConnectPro Receptacle install? The receptacle can be installed using the supplied mounting plate for front-panel installation or the locking ring for rear-access installation. The product is designed for easy installation and can replace other trolling motor plugs and receptacles.
• Is the Marinco ConnectPro 3-Wire Receptacle weather resistant? Yes. The receptacle features a watertight sealing cap and drain holes designed to keep water away from electrical components. It also uses corrosion-resistant, plated brass electrical components and Perma-Lock screw terminals designed not to loosen under extreme hull vibration.
• What features does the Marinco ConnectPro Plug have? The ConnectPro Plug has an O-ring seal for waterproof connections, a weather-resistant plug cover, and corrosion-resistant, plated brass electrical components. Its ergonomic contoured grip is designed to assist with easy hookup and ground blade alignment.
• What is included with the Marinco ConnectPro 3-Wire Receptacle & Plug package? The package includes the ConnectPro 3-Wire Receptacle and Plug, identified as the 12VBR and 12VBP. The Sealink 12 Volt family uses corrosion-resistant marine-grade materials, optimized metal connection points for conductivity, and an interconnecting system designed to lock the plug into the receptacle for a moisture-proof connection.

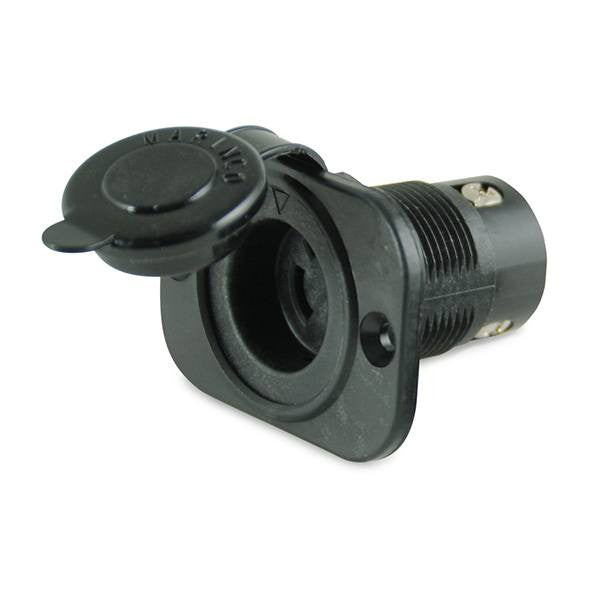

Marinco Connect Pro 3-Wire Receptacle

Connect Pro system has superior electric current carrying capacity that eliminates problems that rob motors of power and reduce battery life. The ConnectPro system features locking plug and receptacle and spring clamping connection, which provides a secure electrical contact.

Marinco's Connect Pro 3-Wire Receptacle has a universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V or 36V systems. This receptacle is designed to be easy to install, and easily replaces other trolling motor plugs and receptacles. Mounting plate is supplied with receptacle.

Features:

Universal design for 2 or 2-wire configuration, 12V, 24V, 12/24V, 24/36V or 36V systems.

Watertight sealing cap.

Corrosion resistant, plated brass electrical components.

Drain holes in receptacle keep water away from electrical components.

Perma-Lock screw terminals will not loosen under extreme hull vibration.

Standard 1-1/8" diameter mounting hole.

Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation

Accepts 10 and 8 AWG wire

Easily replaces other trolling motor plugs and receptacles.

Frequently Asked Questions

• What is the Marinco Connect Pro 3-Wire Receptacle used for? The Marinco Connect Pro 3-Wire Receptacle provides a secure electrical connection for compatible 2- or 3-wire trolling motor systems. It has a universal design for 12V, 24V, 12/24V, 24/36V, or 36V systems and is designed to replace other trolling motor plugs and receptacles.
• What voltage systems does the Marinco Connect Pro 3-Wire Receptacle support? The Marinco Connect Pro 3-Wire Receptacle supports 12V, 24V, 12/24V, 24/36V, or 36V systems in 2- or 3-wire configurations. It accepts 10 and 8 AWG wire.
• Is the Marinco Connect Pro 3-Wire Receptacle weather resistant? Yes. The receptacle features a watertight sealing cap and drain holes designed to keep water away from electrical components. It also uses corrosion-resistant, plated brass electrical components.
• What type of mounting hole does the Marinco Connect Pro 3-Wire Receptacle require? The Marinco Connect Pro 3-Wire Receptacle fits a standard 1-1/8-inch diameter mounting hole. A mounting plate is supplied for front-panel installation, while a locking ring can be used for rear-access installation.
• What type of terminals does the Marinco Connect Pro 3-Wire Receptacle use? The receptacle uses Perma-Lock screw terminals designed not to loosen under extreme hull vibration. The electrical components are corrosion-resistant, plated brass, and the receptacle accepts 10 and 8 AWG wire.
• Does the Marinco Connect Pro 3-Wire Receptacle include mounting hardware? Yes. The receptacle is supplied with a mounting plate for front-panel installation. A locking ring is also specified for rear-access installation, providing two installation options for the receptacle.

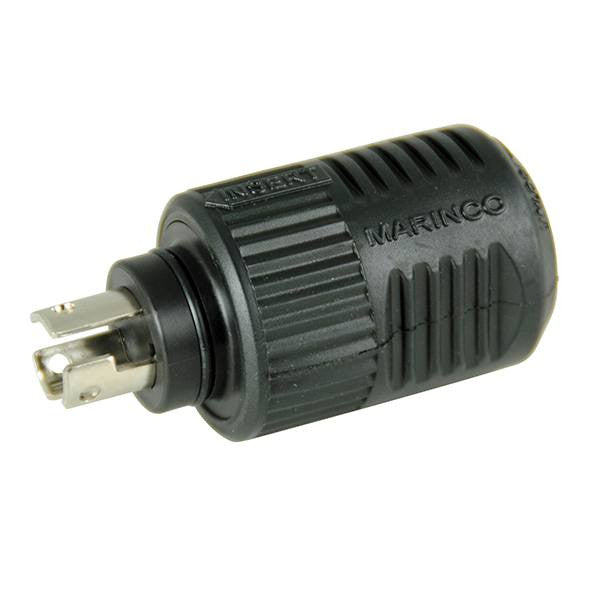

Marinco Connect Pro 3-Wire Plug

Marinco's Connect Pro system has superior electric current carrying capacity that eliminates problems that rob motors of power and reduce battery life. The Connect Pro system features locking plug and receptacle and spring clamping connection, which provides a secure electrical contact.

The Connect Pro Plug accepts 16 to 8 AWG wire and features an O-ring seal for waterproof connections. Built for long-term use, this plug is corrosion-resistant and has plated brass electrical components.

Features:

O-ring seal for waterproof connections

Weather resistant plug cover

Corrosion resistant, plated brass electrical components

Accepts 16 to 8 AWG wire

Ergonomic contoured grip for easy hook-up and ground blade alignment

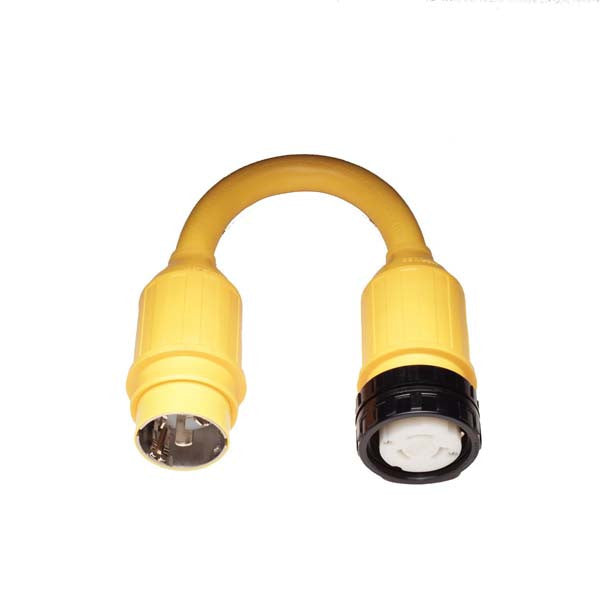

Marinco Pigtail Adapter, 50 Amp Locking to 50 Amp Locking

Pigtail adapters are equipped with covers and sealing collars (where indicated), and are for use in wet locations.

Marinco's unique sealing collar system with cover joins the adapter to the cordset with a positive, mechanical connection.

Product Features:

Boat Side Female connector attaches to boat inlet or cordset, 50A 125V, Locking w/Sealing Collar System.

Dock Side Male plug attaches to dockside receptacle or cordset, 50A 125/250V, Locking.

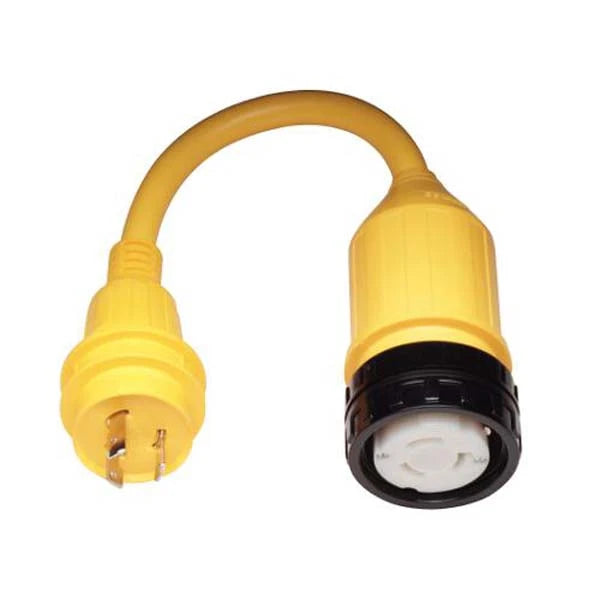

Marinco Pigtail Shore Power Adapter 30A 125V Boat to 50A 125/250V Dock

The Marinco Pigtail Shore Power Adapter 30A Boat  to 50A Dock allows you to connect from one dockside receptacle to one boatside inlet of a different power configuration. Fully molded and equipped with Marinco unique sealing collar and covers for use in wet locations.

Pigtail adapters are equipped with covers and sealing collars (where indicated), and are for use in wet locations.

Marinco's unique sealing collar system with cover joins the adapter to the cordset with a positive, mechanical connection.

Product Features:

Boat Side Female connector attaches to boat inlet or cordset, 30A 125, Locking w/Sealing Collar System.

Dock Side Male plug attaches to dockside receptacle or cordset, 50A 125/250V, Locking.

Interchangeable with:

Hubell HBL61CM71

Marinco P30-504

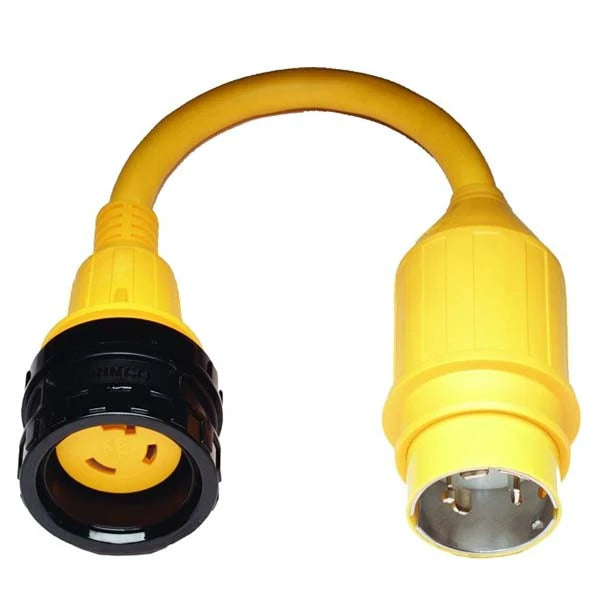

Marinco Pigtail Shore Power Adapter 50A Boat to 30A Dock

The Marinco Pigtail Shore Power Adapter 30A Boat to 50A Dock allows you to connect from one dockside receptacle to one boat side inlet or equipment of a different power configuration. Fully molded and equipped with Marinco's sealing collar and covers for use in wet marine environments.

Pigtail adapters are equipped with covers and sealing collars (where indicated), and are for use in wet locations.

Marinco's unique sealing collar system with cover joins the adapter to the cordset with a positive, mechanical connection.

Product Features:

Boat Side Female connector attaches to boat inlet or cordset, 50A 125/250V, Locking w/Sealing Collar System.

Dock Side Male plug attaches to dockside receptacle or cordset, 30A 125V, Locking.

Interchangeable with:

Marinco P504-30

Furrion FP5530-SY

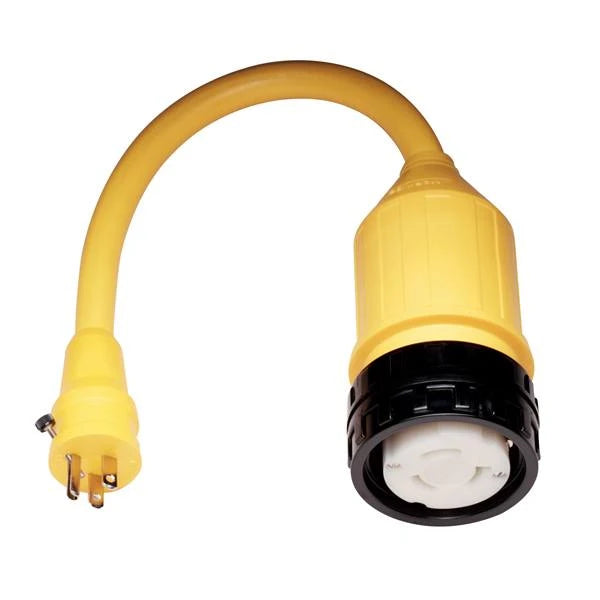

Marinco 50 Amp Shore Power Pigtail Adapter

The Marinco Pigtail Shore Power Adapter 30A Boat to 50A Dock allows you to connect from one dockside receptacle to one boat side inlet or equipment of a different power configuration. Fully molded and equipped with Marinco's sealing collar and covers for use in wet marine environments.

Features:

These adapters are equipped with covers and sealing collars(where indicated), and are for use in wet locations.

Marinco's unique sealing collar system with cover joins the adapter to the cordset with a poitive, mechanical connection.

Description:

Boat side female connector attaches to boat inlet or cordset. 50A 125V, Locking w/Sealing Collar System.

Dock side male plug attaches to dockside receptacle or cordset.  15A 125V Straight Blade w/Locking Screw.

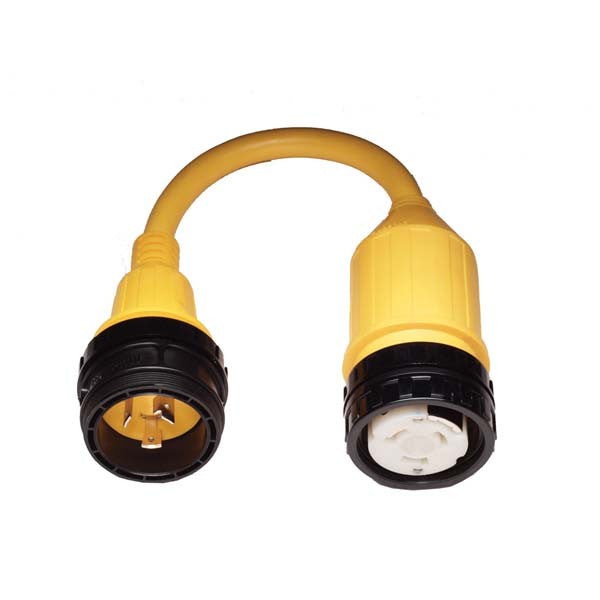

Marinco Pigtail Shore Power Adapter 30A Dock to 50A Boat

The Marinco Pigtail Shore Power Adapter 30A Dock to 50A Boat allows you to connect from a dock receptacle or other power source of power to one boatside inlet or equipment of a different power configuration. Fully molded and equipped with the Marinco sealing color and covers for use in wet marine environments.

These adapters are equipped with covers and sealing collars (where indicated), and are for use in wet locations.

Product Features:

Boat Side, female connector attaches to boat inlet or cordset.  50A 125V, Locking w/Sealing Collar System.

Dock Side, male plug attaches to dockside receptacle or cordset.  30A  125V, Locking.

Interchangeable with:

Marinco P503-30

Hubell HBL61CM56

Furrion FP5030-SY

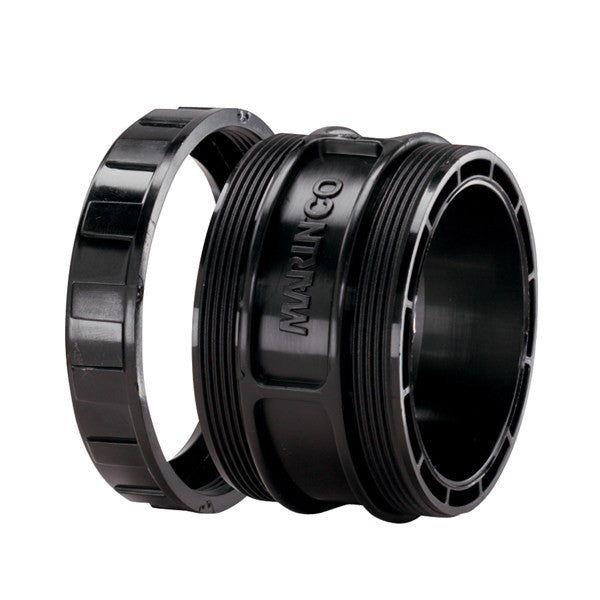

Marinco Shore Power Sealing Collar with Threaded Ring

The Marinco Shore Power Sealing Collar provides maximum moisture protection between the cordset and adapter. This durable sealing collar is designed for use with 20 and 30 amp locking systems.

Frequently Asked Questions

• What is the Marinco Shore Power Sealing Collar with Threaded Ring used for? The Marinco Shore Power Sealing Collar with Threaded Ring is designed to provide moisture protection between a shore power cordset and adapter. It is intended for use with compatible 20A and 30A locking systems.
• What amperage locking systems is the Marinco Shore Power Sealing Collar compatible with? The Marinco Shore Power Sealing Collar with Threaded Ring is designed for use with 20A and 30A locking systems.
• How does the Marinco Shore Power Sealing Collar help protect a connection? The Marinco Shore Power Sealing Collar provides moisture protection between the cordset and adapter. Its threaded ring design is intended for compatible shore power locking systems.
• Does the Marinco Shore Power Sealing Collar have a threaded ring? Yes. The Marinco Shore Power Sealing Collar features a threaded ring and is designed for use with compatible 20A and 30A locking systems.

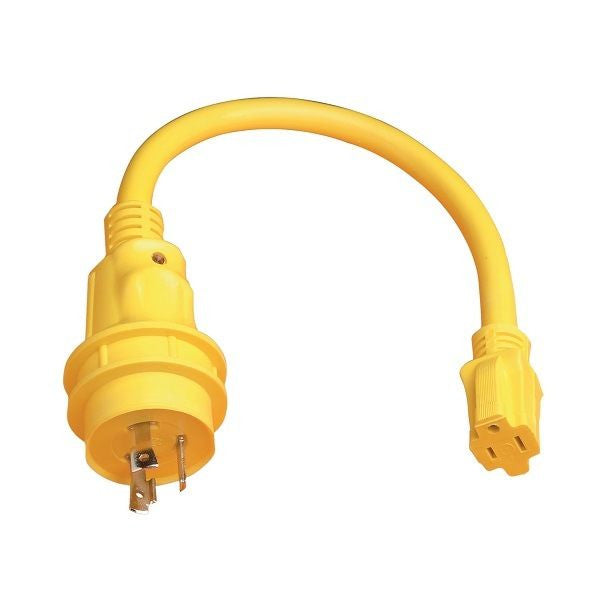

Marinco 15A Pigtail Shore Power Adapter Plus

The Marinco 15 Amp Shore Power Pigtail Adapter Plus allows you to connect from one dockside receptacle to one boatside inlet or equipment with a different power configuration. The adapters are fully molded and equipped with the Marinco sealing collar and covers for use in wet locations.

Pigtail Adapters are equipped with covers and sealing collars (where indicated) , and are for use in wet locations.

Features a power -on indicaor and thumbgrip locator.

Boat Side, Female Connector attaches to boat inlet or cordset, 15A 125V Straight Blade

Dock Side, Male Plug attaches to dockside receptacle or cordset, 30A 125V Locking

Interchangeable with:

Furrion FP1530-SY

Marinco P15-30

Hubell HBL105GF

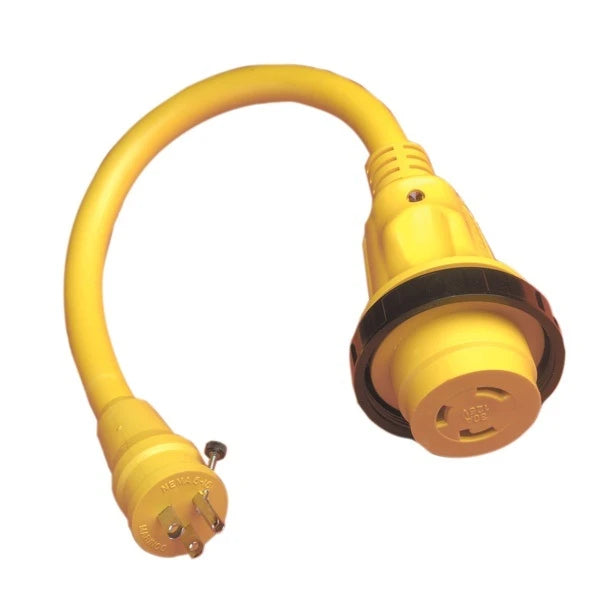

Marinco 30A Shore Power Pigtail Adapter

The Marinco 30 Amp Shore Power Pigtail Adapter allows you to connect from one dockside receptacle to one boatside inlet or equipment with a different power configuration. The adapters are fully molded and equipped with the Marinco sealing collar and covers for use in wet locations.

Product Features:

Plus version of the 104 AMP with LED power indicator light and thumbgrip locator

Boat Side Female Connector attaches to boat inlet or cordset, 30Q 125V Locking w/sealing Collar System

Dock Side Male Plug attaches to dockside receptacle or cordset, 15A - 125V male (which attaches to dockside receptacle or cordset) withlocking Screw

Interchangeable with:

Marinco P30-15

Hubell HBLCM22

Hubell HBLCM22W

Furrion FP3015-SY

Frequently Asked Questions

• What is the Marinco 30A Shore Power Pigtail Adapter used for? The Marinco 30A Shore Power Pigtail Adapter connects a dockside receptacle to a boatside inlet or equipment with a different power configuration. It has a 30A 125V locking female connector on the boat side and a 15A 125V male plug for the dockside connection.
• What type of boat-side connection does the Marinco 30A Shore Power Pigtail Adapter use? The boat-side female connector is a 30Q 125V locking connector with a sealing collar system. It attaches to a compatible boat inlet or cordset.
• What type of dockside connection does the Marinco 30A Shore Power Pigtail Adapter use? The dockside male plug is rated at 15A 125V and attaches to a compatible dockside receptacle or cordset. It includes a locking screw to help secure the connection.
• Is the Marinco 30A Shore Power Pigtail Adapter suitable for wet locations? Yes. The adapter is fully molded and equipped with the Marinco sealing collar and covers for use in wet locations. It also features a sealing collar system on the boat-side connector.
• What features are included with the Marinco 30A Shore Power Pigtail Adapter? This version of the adapter includes an LED power indicator light and a thumbgrip locator. The fully molded construction is also equipped with a Marinco sealing collar and covers for wet-location use.
• What products is the Marinco 30A Shore Power Pigtail Adapter interchangeable with? The Marinco 30A Shore Power Pigtail Adapter is listed as interchangeable with Marinco P30-15, Hubell HBLCM22, Hubell HBLCM22W, and Furrion FP3015-SY.

Marinco Weatherproof Cover with Threaded Sealing Ring

Features:

Weatherproof cover with threaded sealing ring

For use with 20 AMP and 30 AMP female connectors

Use with 305CRCN or 205 CRCN

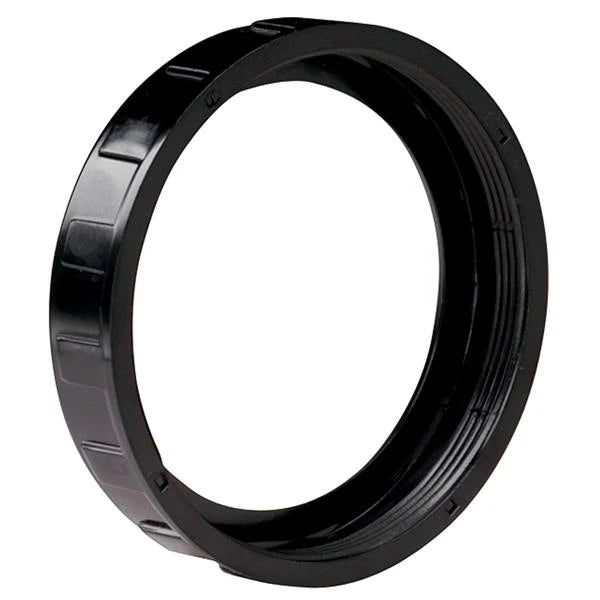

Marinco Threaded Sealing Ring

For use with 30 AMP Systems

30 AMP - 125 V
