Kidde Fire Systems

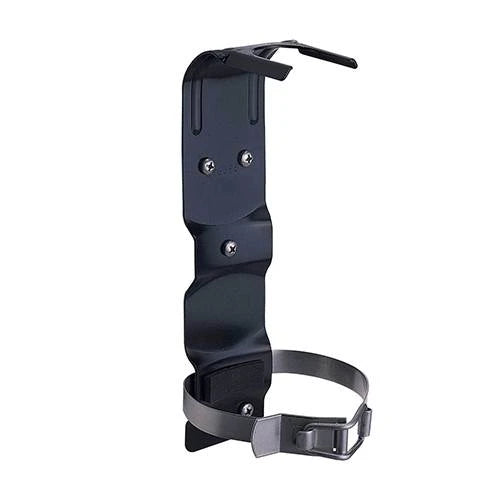

Kidde Steel Marine Fire Extinguisher Bracket

The Kidde fire extinguisher bracket is made of steel with a black enamel finish for durability in marine environments. The stainless steel straps are corrosion resistant and are easy to use to secure your extinguisher in place. Mounting the bracket will require 4-1/4" screws, bolts, or rivets

Instructions:

Twist the metals straps 90° so they are facing straight out either side

Fasten bracket to the wall

Place fire extinguisher into holder

Buckle the retainer straps to lock the extinguisher into place

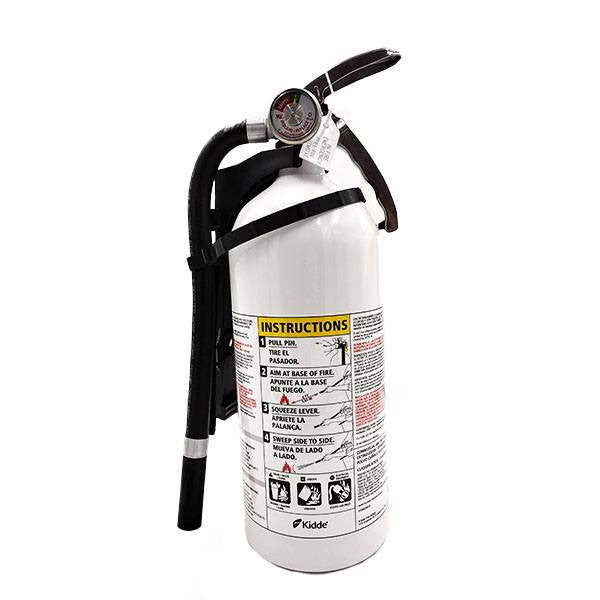

Kidde Mariner 210 2A:10-B:C Marine Fire Extinguisher

The Kidde Mariner 210 fire extinguisher is USCG 5-B rated for use on marine vessels. Thia fire extinguisher has a classification for 1-A Common combustible, 10-B:C flammable liquids and electrical equipment. Constructed from both stainless steel and aluminum to provide corrosion resistance and provide a long service life. These durable components allow Kidde to offer a 12 year service free life and warranty on the Mariner 210. The included polymer mounting bracket is easily mounted for convenient storage and placement in case of emergency.

Features:

UL Rated 1-A:10-B:C

USCG 5-B Rated & Approved

Included Mounting Bracket

Dry Chemical Extinguisher

Stainless Steel & Aluminum Construction

12 Year Warranty

Specifications:

Agent Charge: 4.0  lbs

Discharge Time: 13 - 15 seconds

Temperature Limits: -40° F - 120° F (-40° C - 49° C)

Tested to: 300 psi

Mounting Options

Plastic Strap Retainer w/Fold Down Straps (Included; Model 322057)

Fasten retainer to wall

Place fire extinguisher into holder

Buckle the retainer straps to lock them in place

Steel Bracket w/Metal Straps (Model 420118)

Twist the metals straps 90° so they are facing straight out either side

Fasten bracket to the wall

Place fire extinguisher into holder

Buckle the retainer straps to lock the extinguisher into place

Wall Hanger

Fasten hangar to wall

Place extinguisher into hanger

Motorboat Fire Extinguisher Minimum Requirements

Boats Under 26'

One 5-B or one 20-B rated extinguisher

Boats 26' - 40'

Two 5-B or one 20-B rated extinguisher(s)

Boats 40' - 65'

Three 5-B or two 20-B rated extinguishers

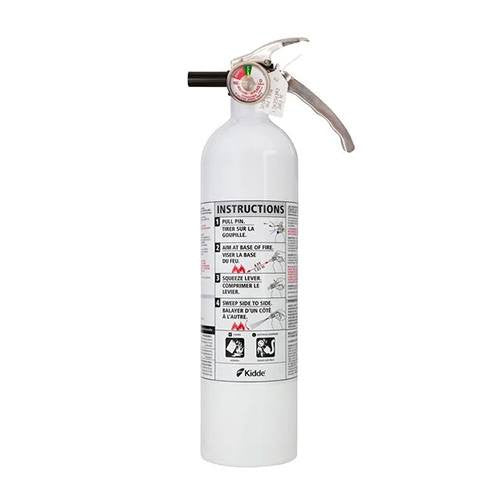

Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher

The Kidde Mariner 110 fire extinguisher is USCG 5-B rated for use on marine vessels. This fire extinguisher has a classification for 1-A Common combustible, 10-B:C flammable liquids and electrical equipment. Constructed from both stainless steel and aluminum to provide corrosion resistance and provide a long service life. These durable components allow Kidde to offer a 12 year service free life and warranty on the Mariner 110. The included polymer mounting bracket is easily mounted for convenient storage and placement in case of emergency.

Features:

UL Rated 1-A:10-B:C

USCG 5-B Rated & Approved

Included Mounting Bracket

Dry Chemical Extinguisher

Stainless Steel & Aluminum Construction

12 Year Warranty

Specifications:

Agent Charge: 2.4 lbs

Discharge Time: 8 - 11 seconds

Temperature Limits: -40° F - 120° F (-40° C - 49° C)

Tested to: 300 psi

Mounting Options:

• Plastic Strap Retainer w/Fold Down Straps (Included; Model 322057)

Fasten retainer to wall

Place fire extinguisher into holder

Buckle the retainer straps to lock them in place

Steel Bracket w/Metal Straps (Model 420118)

Twist the metals straps 90° so they are facing straight out either side

Fasten bracket to the wall

Place fire extinguisher into holder

Buckle the retainer straps to lock the extinguisher into place

Wall Hanger

Fasten hangar to wall

Place extinguisher into hanger

Motorboat Fire Extinguisher Minimum Requirements:

Boats Under 26'

One 5-B or one 20-B rated extinguisher

Boats 26' - 40'

Two 5-B or one 20-B rated extinguisher(s)

Boats 40' - 65'

Three 5-B or two 20-B rated extinguishers

Frequently Asked Questions

• What is the Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher used for? The Kidde Mariner 110 1-A:10-B:C Marine Fire Extinguisher is a dry chemical extinguisher rated for Class A common combustibles, Class B flammable liquids, and Class C electrical equipment. It has a UL 1-A:10-B:C rating and is USCG 5-B rated and approved for marine vessels.
• What are the specifications of the Kidde Mariner 110 Marine Fire Extinguisher? The Kidde Mariner 110 has a 2.4 lb agent charge and an 8–11 second discharge time. Its temperature limits are -40° F to 120° F (-40° C to 49° C), and it is tested to 300 psi.
• What is the Kidde Mariner 110 Marine Fire Extinguisher made from? The Kidde Mariner 110 is constructed from stainless steel and aluminum. These materials are used to provide corrosion resistance and support a long service life. The extinguisher also includes a polymer mounting bracket for convenient storage and placement.
• How do you mount the Kidde Mariner 110 fire extinguisher? The included plastic strap retainer is fastened to a wall before placing the extinguisher into the holder and securing the fold-down straps. A steel bracket with metal straps and a wall hanger are also listed as mounting options, with installation steps provided for each option.
• How many fire extinguishers are required for a motorboat? For boats under 26 feet, the listed minimum is one 5-B or one 20-B rated extinguisher. Boats 26–40 feet require two 5-B or one 20-B rated extinguisher, while boats 40–65 feet require three 5-B or two 20-B rated extinguishers.
• What is the service life and warranty of the Kidde Mariner 110? The Kidde Mariner 110 is designed with a 12-year service-free life and includes a 12-year warranty, according to the supplied product description.

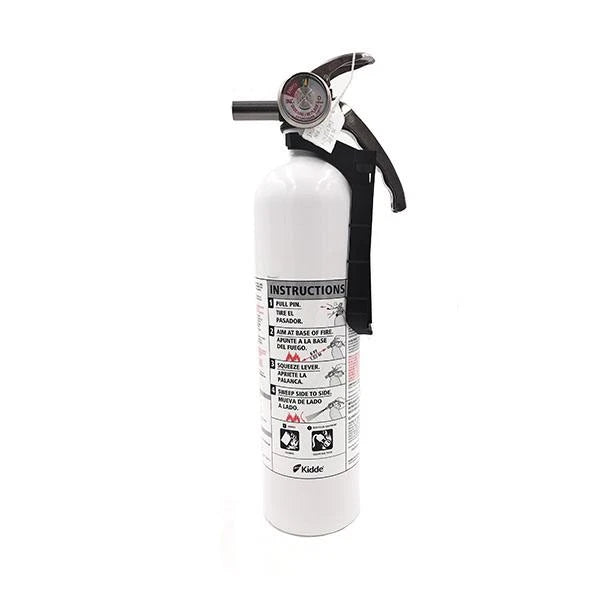

Kidde Mariner 10 B:C Marine Fire Extinguisher

The Kidde Mariner 10 fire extinguisher is USCG 5-B rated for use on marine vessels. This fire extinguisher has a classification for 10-B:C flammable liquids and electrical equipment. Constructed from both stainless steel and aluminum to provide corrosion resistance and provide a long service life. These durable components allow Kidde to offer a 12 year service free life and warranty on the Mariner 10. The included polymer mounting bracket is easily mounted for convenient storage and placement in case of emergency.

Features:

UL Rated 10-B:C

USCG 5-B Rated & Approved

Included Mounting Bracket

Dry Chemical Extinguisher

Stainless Steel & Aluminum Construction

12 Year Warranty

Specifications:

Agent Charge: 2.5 lbs

Discharge Time: 8 - 11 seconds

Temperature Limits: -40° F - 120° F (-40° C - 49° C)

Tested to: 300 psi

Mounting Options:

• Plastic Strap Retainer w/Fold Down Straps (Included; Model 322057)

Fasten retainer to wall

Place fire extinguisher into holder

Buckle the retainer straps to lock them in place

Steel Bracket w/Metal Straps (Model 420118)

Twist the metals straps 90° so they are facing straight out either side

Fasten bracket to the wall

Place fire extinguisher into holder

Buckle the retainer straps to lock the extinguisher into place

Wall Hanger

Fasten hangar to wall

Place extinguisher into hanger

Motorboat Fire Extinguisher Minimum Requirements:

Boats Under 26'

One 5-B or one 20-B rated extinguisher

Boats 26' - 40'

Two 5-B or one 20-B rated extinguisher(s)

Boats 40' - 65'

Three 5-B or two 20-B rated extinguishers

Frequently Asked Questions

• What is the Kidde Mariner 10 B:C Marine Fire Extinguisher used for? The Kidde Mariner 10 B:C Marine Fire Extinguisher is a dry chemical fire extinguisher rated for flammable liquids and electrical equipment. It has a UL 10-B:C rating and a USCG 5-B rating and approval for use on marine vessels.
• What are the specifications of the Kidde Mariner 10 Marine Fire Extinguisher? The extinguisher has a 2.5 lb agent charge and a discharge time of 8–11 seconds. It has temperature limits of -40° F to 120° F (-40° C to 49° C) and is tested to 300 psi.
• What is the Kidde Mariner 10 Marine Fire Extinguisher made from? The Kidde Mariner 10 is constructed from stainless steel and aluminum. These materials provide corrosion resistance and support a long service life for marine applications. The extinguisher also includes a polymer mounting bracket for convenient storage and placement.
• How do you mount the Kidde Mariner 10 fire extinguisher? The included plastic strap retainer can be fastened to a wall before placing the extinguisher into the holder and buckling the straps. A steel bracket with metal straps and a wall hanger are also listed as mounting options. Follow the appropriate mounting steps for the selected holder.
• How many fire extinguishers are required for a motorboat? For boats under 26 feet, the listed minimum is one 5-B or one 20-B rated extinguisher. Boats 26–40 feet require two 5-B or one 20-B rated extinguishers, while boats 40–65 feet require three 5-B or two 20-B rated extinguishers.
• What is the service life and warranty of the Kidde Mariner 10? The Kidde Mariner 10 is designed with a 12-year service-free life and includes a 12-year warranty, according to the supplied product description.

Kidde Mariner 5 BC Portable Fire Extinguisher

This Kidde 5 BC Portable Fire Extinguisher is suitable for use on Class B (liquids and gases) and Class C fires (energized electrical equipment). Easy to operate and powder coated for corrosion protection, this fire extinguisher provides a pressure gauge with an at-a-glance status. The Mariner 5 unit is manufactured from lightweight aluminum and includes a tough aluminum valve assembly.

Features:

Easy-To-Pull Safety Pin

Rust Resistant Handle

Clear Instruction Label Using Graphics To Show Steps Required To Operate Extinguisher

UL Approved Strap Retention Bracket

Pressure Gauge Provides At-A-Glance Status

2 lb. Of Monoammonium Phosphate Fire Extinguishing Agent (Average)

Portable

Powder Coated Cylinder For Corrosion Protection

12 Year Limited Warranty

Specifications:

Dimensions: 3-1/4" x 4-1/4" x 4-1/10"

UL Rating: 5 B:C

Class: BC

Cylinder Material: Aluminum

Extinguishing Agent: Monoammonium phosphate

USCG Approval: Yes, DOT Approved

Frequently Asked Questions

• What is the Kidde Mariner 5 BC Portable Fire Extinguisher used for? The Kidde Mariner 5 BC Portable Fire Extinguisher is designed for Class B fires involving liquids and gases and Class C fires involving energized electrical equipment. It has a UL 5-B:C rating and is USCG and DOT approved.
• What type of extinguishing agent does the Kidde Mariner 5 BC use? The Kidde Mariner 5 BC uses monoammonium phosphate fire extinguishing agent, with an average charge of 2 pounds. It is classified as a BC extinguisher for use on the fire types specified in the product description.
• What is the Kidde Mariner 5 BC fire extinguisher made from? The Kidde Mariner 5 BC features a lightweight aluminum cylinder and a tough aluminum valve assembly. Its cylinder is powder coated for corrosion protection, while the handle is designed to resist rust.
• Does the Kidde Mariner 5 BC have a pressure gauge? Yes. The Kidde Mariner 5 BC includes a pressure gauge that provides an at-a-glance status. It also has a clear instruction label with graphics showing the steps required to operate the extinguisher.
• What mounting features are included with the Kidde Mariner 5 BC? The Kidde Mariner 5 BC includes a UL-approved strap retention bracket. The extinguisher is also portable, allowing it to be stored using the included bracket while remaining readily accessible.
• What are the dimensions and warranty of the Kidde Mariner 5 BC? The Kidde Mariner 5 BC measures 3-1/4" x 4-1/4" x 4-1/10" and includes a 12-year limited warranty. Its aluminum cylinder and powder-coated finish provide the construction features specified for this portable marine fire extinguisher.

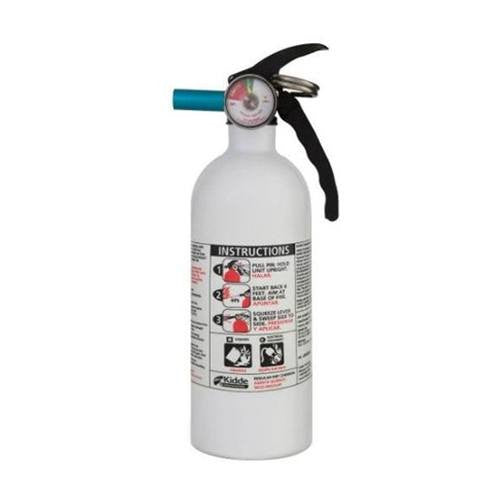

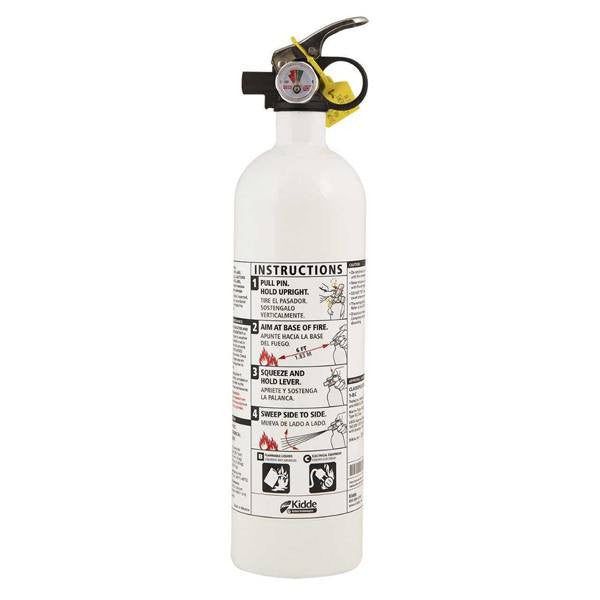

Mariner Mini PWC Fire Extinguisher

This fire extinguisher is suitable for use on Class B (liquids & gases) and CLass C (energized electrical equipment) fires. It has an easy to read gauge that tells you if the fire extinguisher is charged and ready for use. On the fire extinguisher it shows clear instruction label using graphics to show steps required to operate extinguisher. The regular dry chemical Sodium Bicarbonate is UL listed and UL rated 5-B:C.

Features

UL listed

6 year limited warranty

Sodium Bicarbonate

UL rated 5-B:C (liquids & gases),(energized electrical equipment)

UL approved bracket

Clear instruction label

Easy to read gauge, at a glance

Rust and impact resistant

Easy to pull safety pin

Specifications

Net weight: 2.0 lb.

Unit weight: 2.75 lb.

Diameter: 2.9 inches

Height: 12.02 inches

Discharge time: 8-10 seconds

Discharge range: 8-12 feet

Operating pressure: 100 psi

Cylinder: Seamless aluminum

Valve, handle, lever: Aluminum and stainless steel

Strap Bracket: USCG approved
