Jabsco Regulator Flush Mt. White

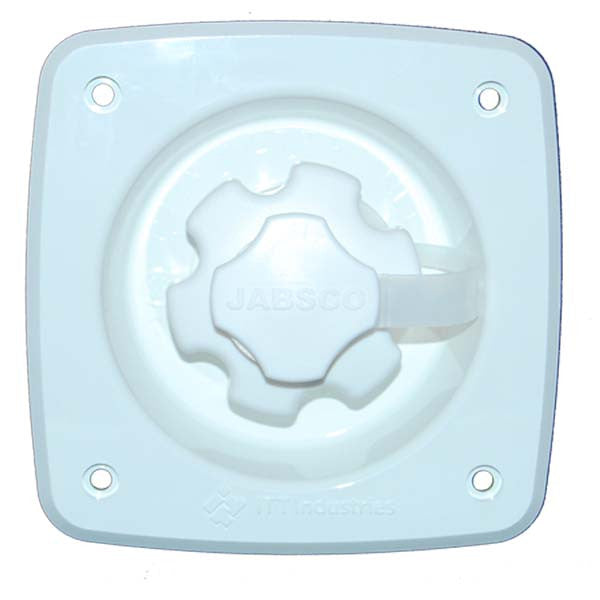

Jabsco Flush Mount Pressure Regulator

This Jabsco pressure regulator protects your boat's water system by regulating water pressure from 46-125 psi down to a safe 45 psi automatically. Whether connected to a dock-side main or a campground faucet, the Jabsco Regulator will maintain regulated output at low or high flow rates. Features a built-in backflow preventer and an easy cleaning strainer. Flush mount regulator mounts permanently in vessel super structure and easily replaces most original city water entries.

Features:

Regulates water pressure from 46-125 psi down to 45 psi.

Allows lower pressures to pass through unregulated.

Built-in backflow preventer

Easy cleaning strainer

Easy to install

Dust cap

Flush mount

Specifications:

Variance is ± 5 psi

Color: White

Fitting: 3/4 GHT(f) inlet and 1/2"-14 pipe 90° swivel-elbow outlet

Materials: UV-resistant plastic, crack-resistant mounting flange

Working Temperature: 33-150°F

Weight: 0.4 lb.

Dimensions: 3 1/2"D x 4 3/8"H x 4 3/8"W.
