Big Sky Precision

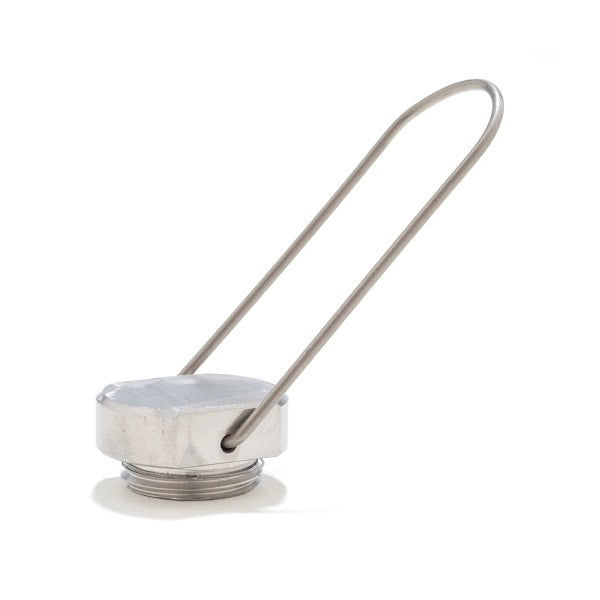

Phender Pro Fender Cleat Install Tool

The Phender Pro Install Tool is used to install the Phender Pro Quick Release Fender Cleat. This tool is easy to use and can be used for multiple installations. The Install Tool is available in both 1/2" and 3/8" sizes to match whichever size Phender Pro Clear you are installing.

Features:

Heavy-duty, hassle-free install tool

For use with Phender Pro Quick Release Cleats

316 Stainless steel construction for ultimate corrosion resistance

Made in the USA

Sizes Available:

1/2"

3/8"

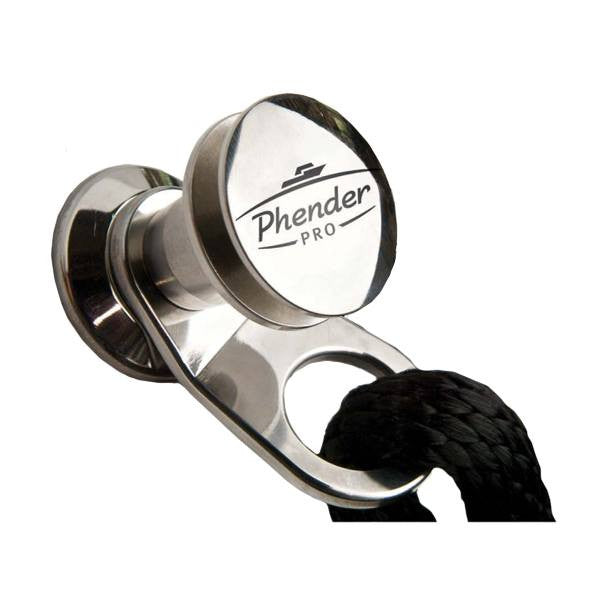

Phender Pro Quick Release Fender Cleat

Big Sky Precision's Phender Pro is the most advanced, easy-to-use, quick-release fender cleat on the market. The Phender Pro combines advanced technology, innovative design, and durability to make docking effortless. This cleat is machined from solid stainless steel and hand-polished to a mirror finish. The 316 stainless construction ensures ultimate corrosion resistance, making this cleat a great option for fresh and saltwater vessels. The quick-release function of this fender cleat allows you to quickly dock and undock with one simple click.

The Phender Pro has been designed to ensure long-lasting use. Its unique anti-wear design keeps the pin above the receiver, protecting the highly-polished finish. Additionally, the line attachment tabs are CNC-machined to soften to edges, protecting your line. The Dentless, Delrin-tipped pin protects both the receivers and the boat finish. The Phender Pro offers many great features, and its installation is quick and easy.

For a 24-foot boat, it is recommended to purchase (2) Phender Pro Quick Release Fender Cleats, (1) Phender Pro Quick Release Fender Receiver, and (1) Phender Pro Install Tool.

Features:

316 Stainless steel construction

Hand-polished and passivated for a mirror finish

Heavy-duty, machined tab with soft edges

Dentless, Delrin-tapped pin

Proprietary Anti-Wear quick-release pin floats cleat above receiver

Installation instructions included

Lifetime warranty

Made in the USA

Sizes Available:

1/2"

3/8"

NOTE: The Phender Pro Install Tool is required for installation.

Instructions:

• The following tools are recommended for the installation process:

Marine Grade silicone

Loctite (Blue)

Dust rag

3/8" Allen wrench

Painter tape

Pencil

New 1" Drill Bit (Spade Bit, Hole Saw, or Multi-Tooth Forstner Bit)

Phender Pro Install Tool (1/2" or 3/8" depending on which Phender Pro you purchase)

Pre-Installation:

• Prior to installation, you will need to figure out where you will be installing your Phender Pro Receivers. Consider the following:

Each fender should be in the right location to fend off the boat.

Use the Locator Disk (included) to insure the hole will be drilled in a flat area. See the diagram below.

Be sure to check behind where the hole will be drilled for structural pieces, cables, etc.

Put the receivers on the same spot on each side of the boat

Once you have decided on where to place your Phender Pro Quick Release Receivers, it's time to drill the holes.

Using the Locator Disk, mark the dead center of the receiver with a pencil.

1/2" Receiver = 1" Hole

3/8" Receiver = 3/4" Hole

Center punch each hole so the drill won't wander (a small nail can substitute for a center punch).

Drill the hole from the outside toward the inside. Be sure to stop about a third of the way through.

Use the hole in the center to drill from the inside just enough to score the fiberglass.

Note: Always finish drilling from the outside. This will minimize the risk of chipping the gel-coat.

Installing the Receiver:

Clean inside and outside surfaces

Screw install tool into the brass nut plate

Remove protective film from adhesive tape

Pivot nut plate, insert in hole, pivot back and pull several times to adhere tape on back side of fiberglass

Unscrew install tool

Apply marine grade silicone to underside of receiver head

Apply Loctite to receiver threads, screw into brass nut plate and tighten with Allen wrench

For more information regarding installation, refer to the video above. Each Phender Pro product comes with installation instructions included.

Frequently Asked Questions

• What is the Phender Pro Quick Release Fender Cleat used for? The Phender Pro Quick Release Fender Cleat is designed to make docking and undocking easier by allowing a fender to be released with one click. Its 316 stainless steel construction is suited for fresh and saltwater vessels, while the quick-release desi…

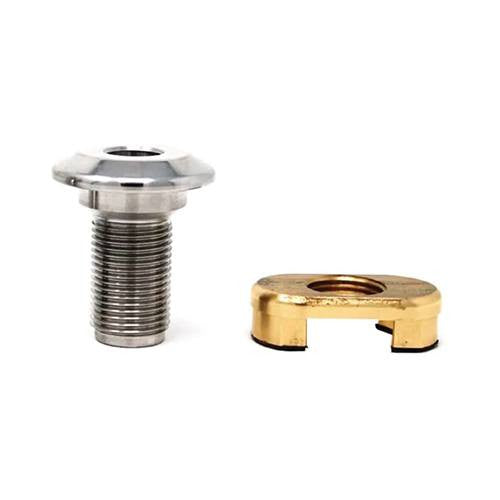

Phender Pro Quick Release Fender Receiver

The Phender Pro Quick Release Fender Receiver makes docking quick, easy, and hassle-free. This durable receiver is machined from 316 stainless steel for maximum corrosion resistance. The Phender Pro Quick Release Fender Receiver includes both the stainless steel receiver and a brass nut plate. This receiver is easy to install with the Phender Pro Install Tool (sold separately).

For a 24' boat, it is recommended to purchase (2) Phender Pro Quick Release Fender Cleats, (1) Phender Pro Quick Release Fender Receiver, and (1) Phender Pro Install Tool.

Features:

316 Stainless steel receiver

Brass nut plate

Made in the USA

Sizes Available:

1/2"

3/8"

Phender Pro Install Tool is required for installation

Recommended Tools for the Installation Process:

Marine Grade silicone

Loctite (Blue)

Dust rag

3/8" Allen wrench

Painter tape

Pencil

New 1" Drill Bit (Spade Bit, Hole Saw, or Multi-Tooth Forstner Bit)

Phender Pro Install Tool (1/2" or 3/8" depending on which Phender Pro Receiver you purchase)

Pre-Installation:

• Prior to installation, you will need to figure out where you will be installing your Phender Pro Receivers. Consider the following:

Each fender should be in the right location to fend off the boat.

Use the Locator Disk (included) to insure the hole will be drilled in a flat area. See the diagram below.

Be sure to check behind where the hole will be drilled for structural pieces, cables, etc.

Put the receivers om the same spot on each side of the boat.

Once you have decided on where to place your Phender Pro Quick Release Receivers, it's time to drill the holes.

Using the Locator Disk, mark dead center of the receiver with a pencil.

1/2" Receiver = 1" Hole

3/8" Receiver = 3/4" Hole

Center punch each hole so the drill won't wander (a small nail can substitute for a center punch).

Drill the hole from the outside toward the inside. Be sure to stop about a third of the way through.

Use the hole in the center to drill from the inside just enough to score the fiberglass.

Note: Always finish drilling from the outside. This will minimize the risk of chipping the gel-coat.

Installing the Receiver:

Clean inside and outside surfaces

Screw install tool into the brass nut plate

Remove protective film from adhesive tape

Pivot nut plate, insert in hole, pivot back and pull several times to adhere tape on back side of fiberglass

Unscrew install tool

Apply marine grade silicone to underside of receiver head

Apply Loctite to receiver threads, screw into brass nut plate and tighten with Allen wrench

For more information regarding installation, refer to the video above. Each Phender Pro product comes with installation instructions included.

Frequently Asked Questions

• What is the Phender Pro Quick Release Fender Receiver used for? The Phender Pro Quick Release Fender Receiver is designed to make docking easier by providing a receiver for the Phender Pro quick-release fender system. It is machined from 316 stainless steel and includes a brass nut plate. The receiver is available in 1/2" and 3/8" sizes.
• What sizes of Phender Pro Quick Release Fender Receiver are available? The Phender Pro Quick Release Fender Receiver is available in 1/2" and 3/8" sizes. The corresponding Phender Pro Install Tool must match the receiver size, so select a 1/2" or 3/8" installation tool based on the receiver purchased.
• What is included with the Phender Pro Quick Release Fender Receiver? Each Phender Pro Quick Release Fender Receiver includes a 316 stainless steel receiver and a brass nut plate. A Locator Disk is also included for positioning the receiver during installation. The Phender Pro Install Tool is required for installation but is sold separately.
• What tools and materials are needed to install the Phender Pro Quick Release Fender Receiver? Installation requires the correctly sized Phender Pro Install Tool, marine-grade…

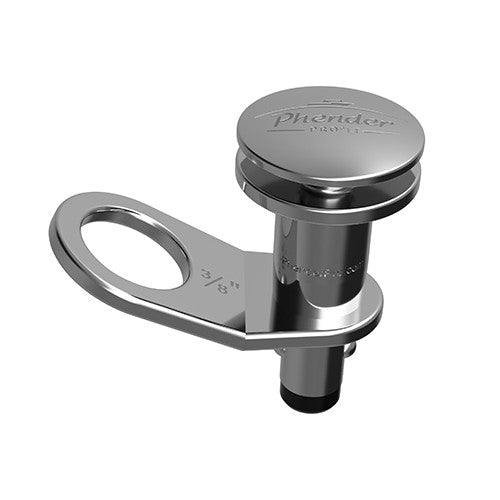

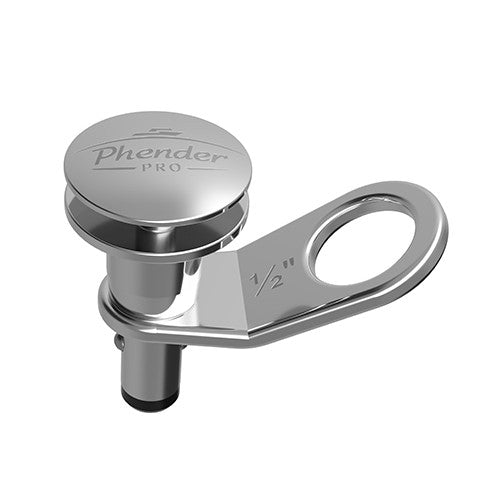

Phender Pro Quick Release Fender Holder

The Phender Pro Quick Release Fender Holder utilizes advanced technology and innovative design to make docking hassle-free. This Quick Release Fender Holder is constructed of 316 stainless steel for maximum corrosion resistance. The line attachment tabs are CNC-machined for soften the edges, protecting your fender line. The Phender Pro Fender Holder is proudly made in the USA and backed by a lifetime warranty.

Features:

316 Stainless steel construction

Maximum corrosion resistance

Dentless Delrin tip

Soft tab edges

Anti-wear design

Made in the USA

Sizes Available:

1/2"

3/8"

Frequently Asked Questions

• What is the Phender Pro Quick Release Fender Holder used for? The Phender Pro Quick Release Fender Holder is designed to make docking easier by providing a quick-release method for securing a fender. Its anti-wear design and softened line attachment tabs help protect the fender line during use.
• What is the Phender Pro Quick Release Fender Holder made from? The Phender Pro Quick Release Fender Holder is constructed from 316 stainless steel for maximum corrosion resistance. It also features a Delrin tip and CNC-machined line attachment tabs with softened edges.
• How does the Phender Pro Fender Holder help protect the fender line? The line attachment tabs are CNC-machined to soften their edges, helping protect the fender line from wear. The holder also incorporates an anti-wear design and a dentless Delrin tip.
• What sizes are available for the Phender Pro Quick Release Fender Holder? The Phender Pro Quick Release Fender Holder is available in 1/2-inch and 3/8-inch sizes. Verify the required size for your application before selecting a holder.
• Where is the Phender Pro Quick Release Fender Holder made? The Phender Pro Quick Release Fender Holder is made in the USA. It is constructed from 316 stainless steel and is backed by a lifetime warranty.
