BEP Marine

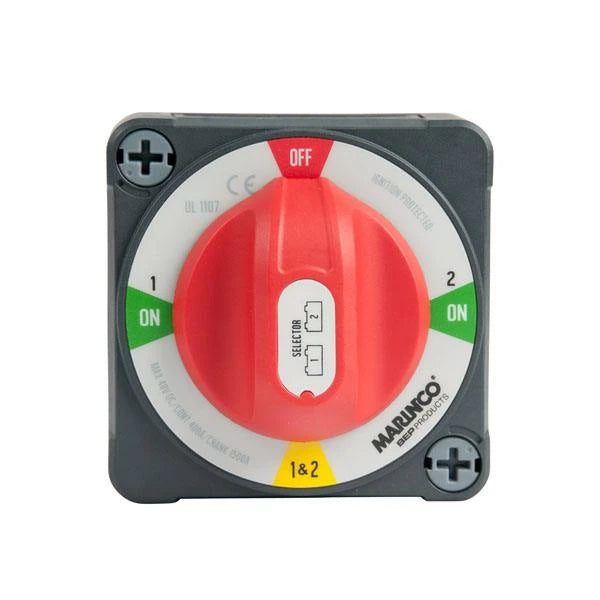

BEP 771-S-EZ Pro Installer 400A EZ-Mount Battery Selector Switch

BEP's Pro Installer Battery Switches offer ease and flexibility of installation and optimal performance in harsh marine environments. This revolutionary battery switch allows for wiring from the front, making installation and cabling easy. The Pro Installer Switch features improved contactor design, ergonomics that provide clear intuitive operation, and an industry-standard mounting footprint. Pro Installer switches are also engineered from the finest materials to withstand the harshest marine environments.

All BEP Pro Installer EZ-Mount switches feature a common interconnection height with the full line of Pro Installer power management products, which allows them to "cluster" with other products utiziling solid link bars. Attention to all aspects of switch function and use has created superior installation options, high power capacity, and improved reliability.

Meets global industry standards UL1107, CE and ABYC.

Features:

Tested to UL1107 ignition protection, CE

Tinned copper 10mm (3/8") studs

Stainless steel washers/nuts

Fiber reinforced plastics

Waterproof to IP66

Same interconnection height as Pro Installer

Removable knob allows isolation during servicing

3 removable side plates for protection

Specifications:

Industry standard 3.85" x 3.85" footprint

Rating: 400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking

Voltage: 48V DC (for 12-48V systems)

Dimensions: 3.85" x 3.85" x 3.62"

Operations: 1-2-Both-Off

Stud: 3x 10mm (3/8")

Mounting: Surface mount

Click to Download BEP Pro Installer EZ Mount Battery Switch Installation Instructions

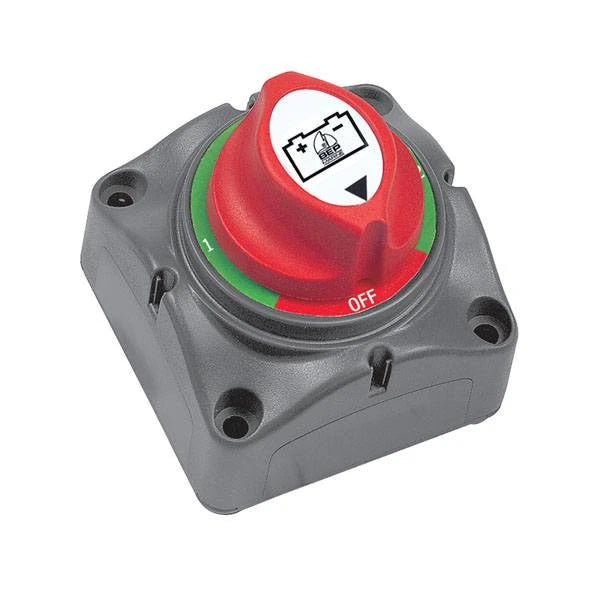

BEP 701S Mini Battery Selector Switch

The BEP 701S Mini Battery Selector Switch is the most compact selector switch available on the market. Constructed of high strength, fiber reinforced plastic, this battery switch is designed for excellent high temperature performance and resistance to chemicals. Three removable side panels allow access of up to 1/0 cables and a rear cover insulates the rear terminals against any short circuits. This combination ensures the switch meets ABYC requirements. Features one, two, both, and off operation.

Please note selector switches will not separate electronics from harmful engine starting spikes.

Features:

Constructed of molded, high-strength, fiber reinforced plastic

Excellent temperature performance and resistance to chemicals

Can be surface or recess mounted by cutting a 2.1" hole

Tin-plated copper studs and nuts

Ignition protected

Specifications:

Dimensions: 2.75" L x 2.75" W x 3" H

Mounting hole: 2.1"

Operation: 1, 2, Both, Off

Continuous Rating: 200 A DC

Intermittent Rating (5 min): 300 A DC

Crank Rating (10 sec): 1000 A DC

Voltage: 48 V DC

Stud Size: 2 x 3/8" / 10mm

Cable to meet rating: 3/0 / 95mm²

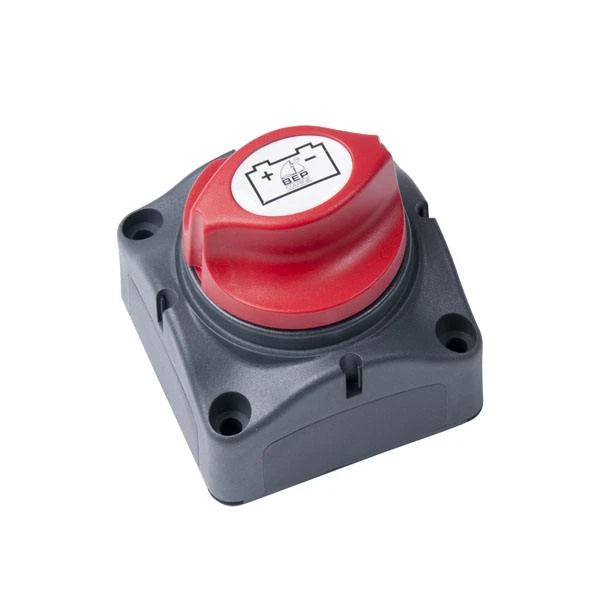

BEP 701 Contour Battery Master Switch (On/Off)

The BEP 701 Contour Battery Switch is a master battery switch with on/off operation. Constructed of high strength, fiber reinforced plastic, this battery switch is designed for excellent high temperature performance and resistance to chemicals. This switch is also manufactured with BEP's patented Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob features an interchangeable labeling system, allowing a full range of applications. The control knob can also be removed by switching to a counter-clockwise 45 degree position. Three removable side panels allow access of up to 1/0 cables and a rear cover insulates the rear terminals against any short circuits. This combination ensures the switch meets ABYC requirements.

Features:

Constructed of molded, high-strength, fiber reinforced plastic

Excellent temperature performance and resistance to chemicals

Patented contour locking system allows switch to be locked together with other switches

Control knob can be removed

Can be surface or recess mounted by cutting a 2.1" hole

Tin-plated copper studs and nuts

Ignition protected

Specifications:

Dimensions: 2.75" L x 2.75" W x 3" H

Mounting hole: 2.1"

Operation: On/Off

Continuous Rating: 275 A DC

Intermittent Rating (5 min): 455 A DC

Crank Rating (10 sec): 1250 A DC

Voltage: 48 V DC

Stud Size: 2 x 3/8" / 10mm

Cable to meet rating: 3/0 / 95mm²

Click to Download BEP 701 Contour Battery Switch Installation Instructions

Frequently Asked Questions

• What is the BEP 701 Contour Battery Master Switch used for? The BEP 701 Contour Battery Master Switch provides on/off control for a marine battery system. It can be used as a stand-alone switch or locked together with other switches using BEP's patented Contour Locking System.
• What are the amperage and voltage ratings of the BEP 701 Contour Battery Switch? The BEP 701 Contour Battery Switch has a continuous rating of 275 A DC, an intermittent rating of 455 A DC for 5 minutes, and a crank rating of 1250 A DC for 10 seconds. Its voltage rating is 48 V DC.
• How can the BEP 701 Contour Battery Switch be mounted? The BEP 701 Contour Battery Switch can be surface mounted or recess mounted using a 2.1-inch mounting hole. The switch measures 2.75 inches long by 2.75 inches wide by 3 inches high.
• What materials are used in the BEP 701 Contour Battery Master Switch? The BEP 701 Contour Battery Master Switch uses molded, high-strength, fiber-reinforced plastic construction. It also features tin-plated copper studs and nuts, with the housing designed for temperature performance and chemical resistance.
• How does the BEP Contour Locking System work on the BEP 701 Battery Switch? The patented Contour Locking System allows the BEP 701 Battery Switch to operate as a stand-alone unit or be locked together with other switches. The control knob also has an interchangeable labeling system and can be removed by turning it to a counter-clockwise 45-degree position.
• What cable and terminal specifications does the BEP 701 Contour Battery Switch have? The BEP 701 Contour Battery Switch has two 3/8-inch (10mm) studs and uses 3/0 (95mm²) cable to meet its listed ratings. Three removable side panels provide access for cables up to 1/0, while a rear cover insulates the rear terminals against short circuits.
