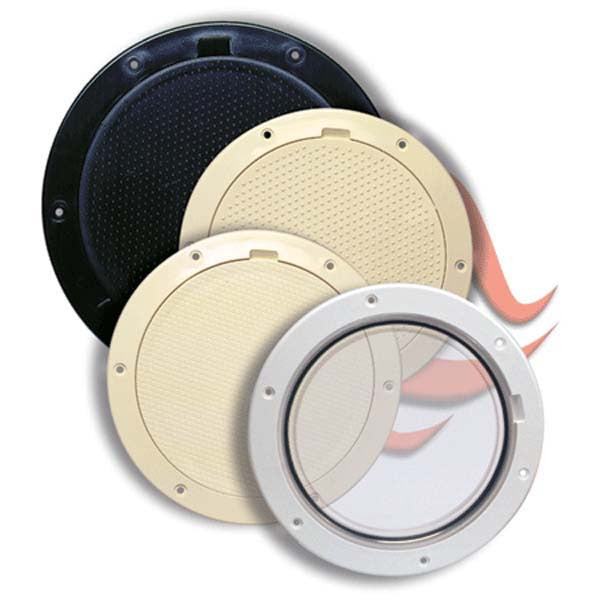

Beckson 8" Deck Plate - Pry Out- Diamond Texture

Beckson developed the first pry-out deck plate as an access cover to its permanently mounted pump. These pry-out plates were designed with an extra heavy O-ring to assure a water tight fit.

The Diamond Pattern Deck Plate takes a proven watertight product a step further. The non-skid pattern extends across the center, eliminating the edge ring that traps dirt and debris. Rain and spray keep the non-skid surface clean.

Features:

Color: Black

Outside Diameter: 10" (25.4 cm)

Inside Diameter: 7 5/8" (19.4 cm)

Hole Cut: 8 3/8" (21.3 cm)

Beckson 8" Deck Plate- Screw Out- Diamond Texture Beckson has added an 8 inch screw out deck plate to our line of premier quality deck and access plates. This plate operates just like the Beckson industry standard 4" and 6" screw out deck plates. It is molded of high quality marine grade plastics and is built to last. Though deck plates are no new invention, Beckson was the first to conquer all three safety features. First, a cover that would not open unexpectedly. Second, maximum water tightness. Third, prevent jamming closed or cross- threading that would prevent a cover from being closed. The Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start, non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A patented back-up sealing wall leaves the plate waterproof, even if the gasket is removed. A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Deck plates also are used for access, inspection, and clean out for tanks and compartments, or just as a general access for shut-off valves or back- fastenings. Our clear center plates permit observation of controls or gauges and visual inspection without the necessity of removing the plate. Features: BEC-DP84-B: Black Rim/ Black, Diamond Texture Center BEC-DP84-W: White Rim/ White, Diamond Texture Center Outside Diameter: 10" (25.4 cm) Hole Cut: 8-1/2" (21.6 cm) Passage: 7-5/8" (19.4 cm)

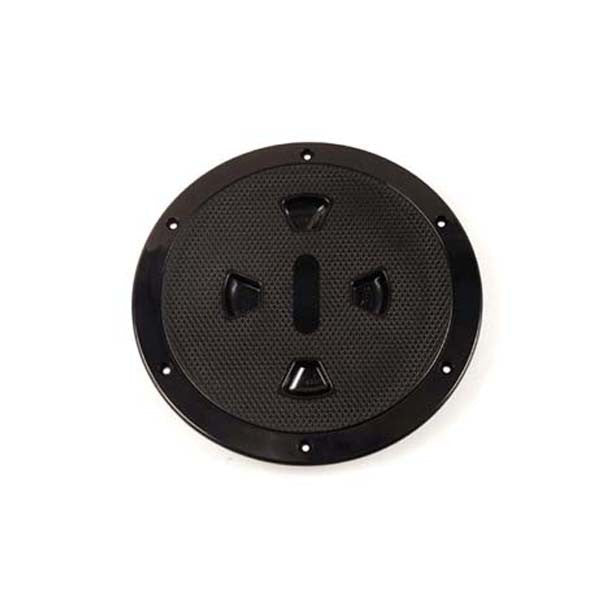

Beckson 6" Deck Plate- Screw Out- Diamond Texture

Though deck plates are no new invention, Beckson was the first to conquer all three safety features. First, a cover that would not open unexpectedly. Second, maximum water tightness. Third, prevent jamming closed or cross- threading that would prevent a cover from being closed.

The Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start, non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A patented back-up sealing wall leaves the plate waterproof, even if the gasket is removed.

A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Deck plates also are used for access, inspection, and clean out for tanks and compartments, or just as a general access for shut-off valves or back- fastenings. Our clear center plates permit observation of controls or gauges and visual inspection without the necessity of removing the plate.

Features:

BEC-DP64-B: Black Rim/ Black, Diamond Texture Center

BEC-DP65-W: White Rim/ White, Diamond Texture Center

Outside Diameter: 8 1/8" (20.6 cm)

Inside Diameter: 6" (15.2 cm)

Hole Cut: 6 1/2" (16.5 cm)

Thin rim OD is 7.50"

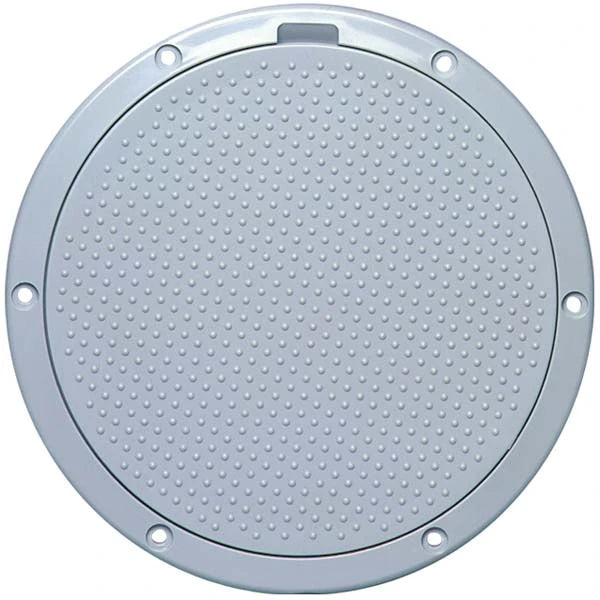

Beckson developed the first pry-out deck plate. These plates were designed with an extra heavy O-ring to assure a water tight fit. This model of plates has a non-skid raised dimple center. Pry-out plates should be installed in areas where internal pressure (oil-canning) is not present. Trim ring outside diameter measures 8-1/8"; hole cut is 6-1/2"; passage is 6-3/16".

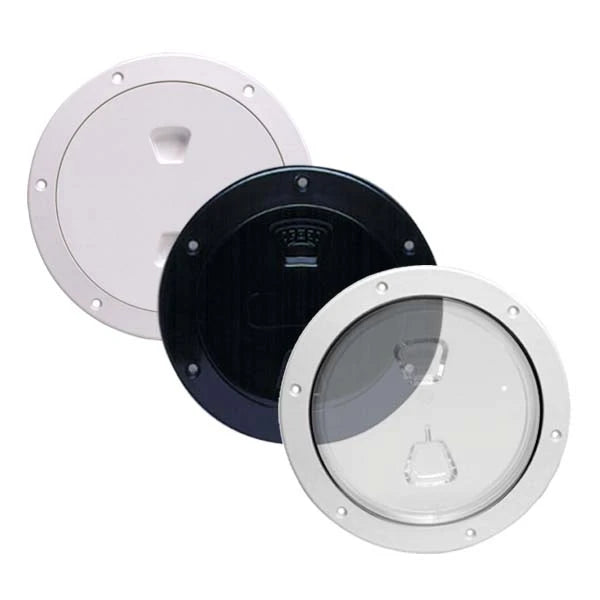

Beckson 6" Deck Plate- Screw Down

Though deck plates are no new invention, Beckson was the first to conquer all three safety features. First, a cover that would not open unexpectedly. Second, maximum water tightness. Third, prevent jamming closed or cross- threading that would prevent a cover from being closed.

The Beckson Screw-Out Plate was designed to provide access without the use of tools, with a single start, non-jamming (no cross-thread), extra strong, self-cleaning buttress thread. They incorporate a self-aligning center and an innovative gasket to assure a watertight seal. A patented back-up sealing wall leaves the plate waterproof, even if the gasket is removed.

A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur. Deck plates also are used for access, inspection, and clean out for tanks and compartments, or just as a general access for shut-off valves or back- fastenings. Our clear center plates permit observation of controls or gauges and visual inspection without the necessity of removing the plate.

Features:

DP60-B: Black Rim/ Black, Smooth Center

DP60-W: White Rim/ White, Smooth Center

DP60-W-C: White Rim/ Clear, Smooth Center

Outside Diameter: 8 1/8" (20.6 cm)

Inside Diameter: 6" (15.2 cm)

Hole Cut: 6 1/2" (16.5 cm)

Thin rim OD is 7.50"

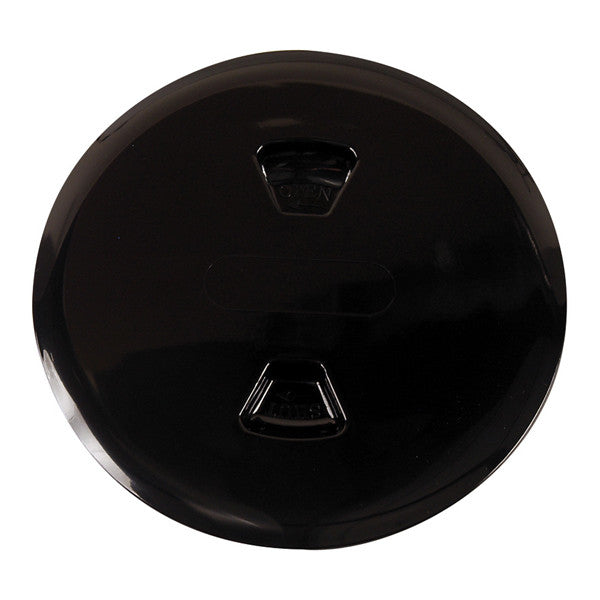

Beckson 5" Twist-Out Deck Plate

This Beckson 5" Twist-Out Deck Plate is designed so that the cover plate will conceal the mounting fasteners under the cover. With three separate sealing areas, this plate is designed to chase water away from the plate opening to ensure a watertight closure. This plate also features bayonet threads that are non-jamming, self-cleaning, and lift the center for easy removal.

Features:

Three Separate Sealing Areas

Mounting Fasteners

Watertight Closure

Bayonet Threads

Non-Jamming

Self-Cleaning

Easy Removal

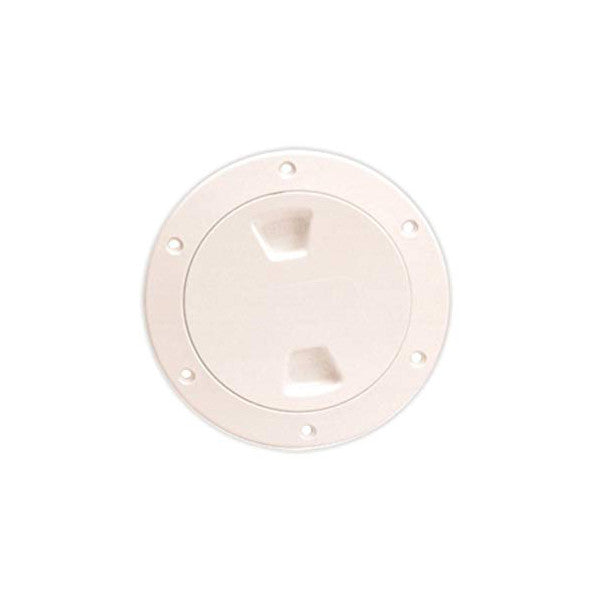

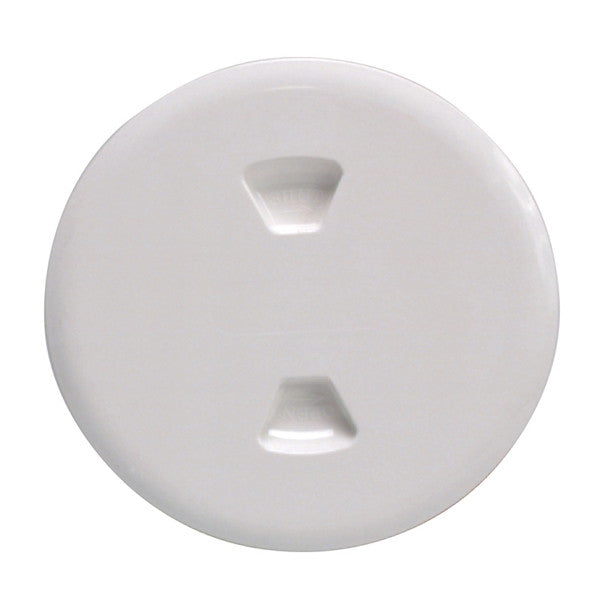

Beckson Smooth 4" Screw-Out Marine Deck Plate

The Beckson Smooth 4" Screw-Out Plate is designed to provide access with a single start non-jamming, self-cleaning, extra strong buttress thread, without the use of tools. With a patented back-up sealing wall, the plate remains watertight even if the gasket is removed. A screw-out plate should be used in compartments where a change in air pressure due to temperature or oil canning can occur.

Features:

No Cross-Threading

Non-Jamming

Self-Cleaning Buttress Thread

Innovative Gasket

Back-Up Sealing Wall

Self-Aligning Center

Certified Water-Tight

Lightweight, High Quality ABS Marine Plastic

Corrosion Resistant

Available In Multiple Colors

Beckson High Impact Boat Panel Cover Plate

Cover Plates are designed to quickly seal or conceal installation holes, instrument panel holes and other access holes where ready entry is not a requirement. Molded of high-impact, marine quality plastic, with ultraviolet inhibitors for prolonged service. Measuring 6.5" OD, Cover Plates conceal holes up to 5-1/8" (13cm) in diameter and mount with only four screws. Available in white or black, high-tech matte finish provides a rich looking installation.

Frequently Asked Questions

• What is the Beckson High Impact Boat Panel Cover Plate used for? The Beckson High Impact Boat Panel Cover Plate is designed to seal or conceal installation holes, instrument panel holes, and other access holes where regular entry is not required. It provides a finished cover for openings in marine applications.
• What size holes can the Beckson Boat Panel Cover Plate conceal? The Beckson High Impact Boat Panel Cover Plate measures 6.5 inches in outside diameter and is designed to conceal holes up to 5-1/8 inches, or 13 cm, in diameter.
• How is the Beckson High Impact Boat Panel Cover Plate installed? The Beckson High Impact Boat Panel Cover Plate mounts with four screws. The product description does not specify screw size or additional installation hardware, so use appropriate hardware for the installation.
• What is the Beckson High Impact Boat Panel Cover Plate made from? The Beckson High Impact Boat Panel Cover Plate is molded from high-impact, marine-quality plastic with ultraviolet inhibitors. Its high-tech matte finish provides a finished appearance after installation.
• What colors are available for the Beckson High Impact Boat Panel Cover Plate? The Beckson High Impact Boat Panel Cover Plate is available in white or black. Both color options feature the same 6.5-inch outside diameter and are designed to conceal holes up to 5-1/8 inches in diameter.

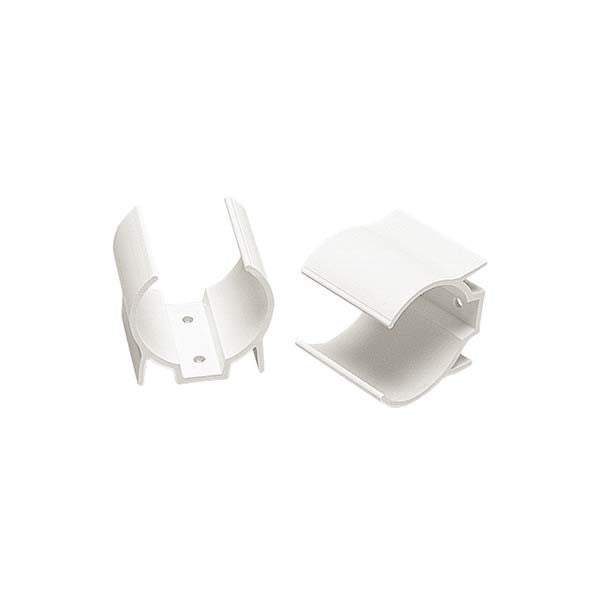

Clipmate™ Holding Clips – Superior Extruded Holding Clips

This unique design and tempered B-Flex plastic material make Beckson’s clips the perfect way to hold brooms, racks, pumps, flashlights, tools, and other round objects neatly in place.  The patented leg design provides permanent holding spring action unlike metal or other plastic clips, which ultimately become fatigued.  Corrosion is non-existent.  Clipmate™ clips require a #6 pan head fastener.

Sold as a pair.    Color: White

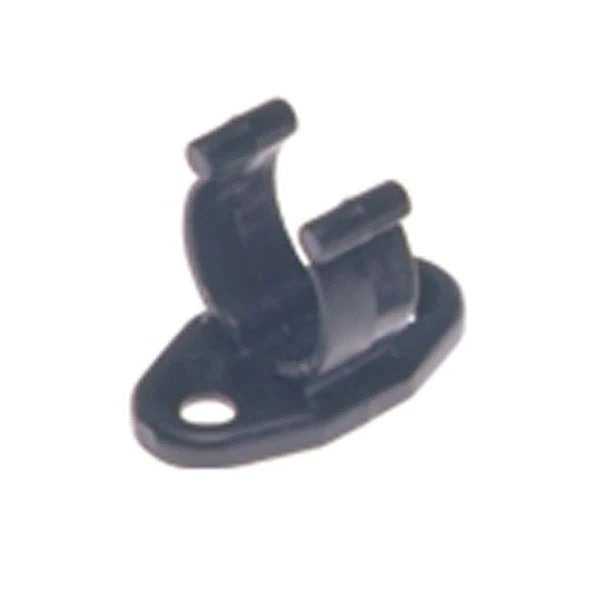

Clipper™ Holding Clips – Superior Molded Holding Clips

Beckson’s attractive plastic clips are here to solve your holding needs with style.  Ideal for storing boat hooks, gaffs, mops, flashlights, pumps, tools and a variety of accessories.  These clips are non-conductive, non-magnetic, and non-corrosive making them perfect for indoor or outdoor use.  Many uses for home, auto, and RV also. All sizes use 1/8" holes on 3/4" centers.

Sold in pairs.    Color black.
