Anchorlift

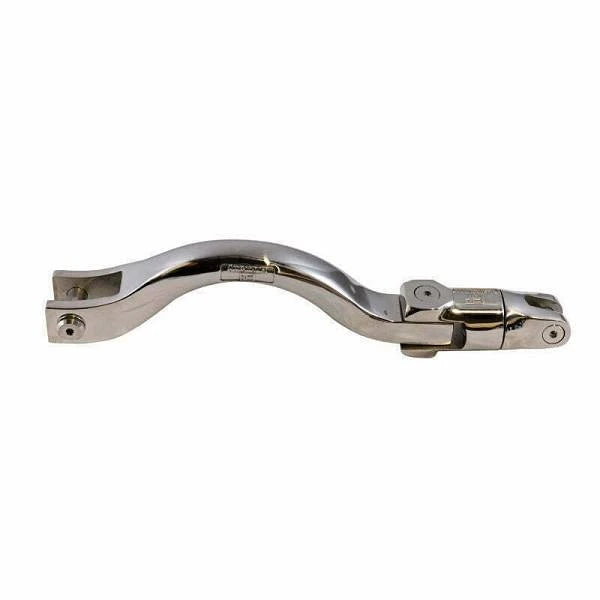

Anchorlift Anchor Turner Kit The Anchorlift Anchor Turner is a must have for all boat owners to remove the hassle of parking your anchor. This patent pending turner will help your anchor twist around to correctly sit in the bow roller every time. The anchor turner is constructed of high grade 316L stainless steel for durability in marine environments. The anchor turner kit includes Anchorlift's exclusive swivel connector and is invaluable for any boater. Specifications:   Model#   Chain Size   Anchor Size   Breaking Load   Boat Size Installation Instructions   965008   1/4"   Up to 22lbs   5500lbs   Up to 35'   Click here to download   965010   5/16"   Up to 66lbs   8800lbs   Up to 45'   Click here to download   965011   3/8"   Up to 110lbs   13200lbs   45' - 65'   Click here to download   965012   1/2"   Up to 175lbs   15400lbs   65' - 100'+   Click here to download

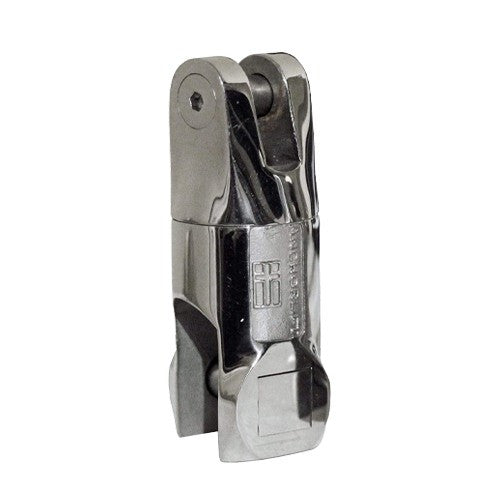

AnchorLift Stainless Steel Anchor Swivel The AnchorLift Stainless Steel Anchor Swivel attaches to the anchor shank to ensure the rode chain doesn't get twisted. AnchorLift swivels have an exclusive bronze washer between the two moving parts, which deters the effects of electrolysis and prevents metal to metal contact resulting in a longer lasting, more reliable swivel. The oval shaped joint allows for the perfect sliding of the anchor through a bow roller with no risk of damaging any components. This durable swivel is constructed of solid AISI 316L Stainless Steel and is backed by AnchorLift's 5 year warranty. Features: Stainless steel construction Exclusive bronze washer prevents metal to metal contact 5 Year limited warranty Specifications:   Model#   Breaking Load   Chain Size   Anchor Size   Boat Size 964408   5500lbs   1/4"   22lbs   Up to 35' 964410   12500lbs   5/16" - 3/8"   66lbs   Up to 45' 964411   13200lbs   3/8" - 7/16"   110lbs   45' - 65' 964412   15400lbs   3/8" - 1/2"   175lbs   65' - 100'+ 964420   40700lbs   1/2" - 3/4"   440lbs   65' - 100'+

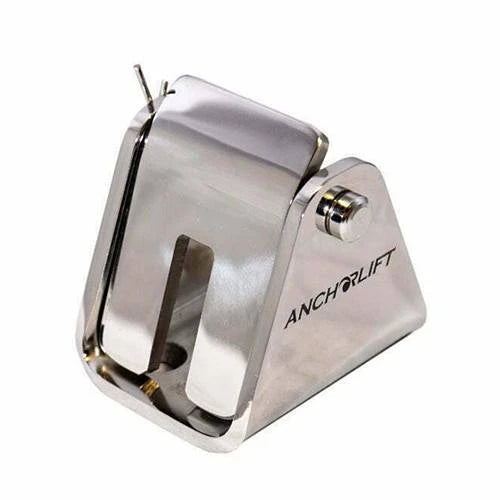

AnchorLift Stainless Steel Chain Stopper

The AnchorLift Chain Stopper works with your anchor rollers to take the tension off the windlass by locking the chain. This chain stopper is constructed of 316L mirror polished stainless steel. Includes a convenient foot tab for safe and easy operation. AnchorLift Chain Stoppers are mounted with 4 screw holes to increase breaking strength.

Specifications:

Part 91404

Fits Chain Size: 1/4" - 5/16"

Breaking Load: 5,500 lbs.

Part 91405

Fits Chain Size: 3/8" - 1/2"

Breaking Load: 5,500 lbs.

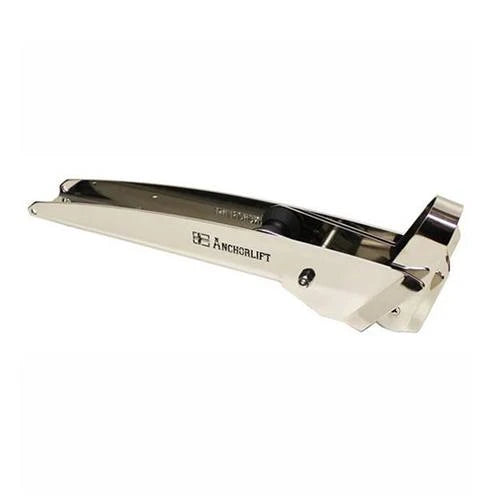

AnchorLift Self Launch Pivoting Bow Roller

The AnchorLift Self-Launching Bow Roller is a high quality, universal self-launching roller for boats ranging from 20 feet to 100 feet. This pivoting head bow roller is designed for easy mounting on most bows and is hinged for smoother self-launching operation. Features a low-profile design and is equipped with high-quality Delrin rollers. Constructed of solid AISI 316L Stainless Steel.

Available in multiple sizes, the AnchorLift Bow Roller is best suited for use with the AnchorLift CX, Bruce, Claw, and Rocna style anchors.

Features:

Pivoting head design

For use with Claw/Bruce type anchors

For boats 20' - 100'

316L Stainless Steel construction

Equipped with Delrin rollers

Specifications:

Model

Length

Width

Anchor Size

Boat Size

90101

16.5"

2.5"

Up to 17lbs

Up to 20'

90102

17"

3"

Up to 33lbs

20' - 35'

90103

23"

3"

Up to 44lbs

28' - 45'

90104

28.5"

3.5"

Up to 66lbs

32' - 45'

90105

35"

4"

Up to 110lbs

50' - 85'

90106

41.5"

5.5"

Up to 176lbs

50' - 85'

90107

49"

5.5"

Up to 264lbs

65' - 100'

Frequently Asked Questions

• What is the AnchorLift Self Launch Pivoting Bow Roller designed for? The AnchorLift Self Launch Pivoting Bow Roller is a universal self-launching bow roller designed for boats from 20 to 100 feet. Its pivoting head is hinged for smoother self-launching operation and is best suited for AnchorLift CX, Bruce, Claw, and Rocna style anchors.
• What is the AnchorLift Bow Roller made from? The AnchorLift Bow Roller is constructed from solid AISI 316L stainless steel and equipped with Delrin rollers. It also features a low-profile design intended for mounting on most bows.
• What anchor types are compatible with the AnchorLift Self Launch Pivoting Bow Roller? The AnchorLift Bow Roller is best suited for use with AnchorLift CX, Bruce, Claw, and Rocna style anchors. The available models accommodate different anchor sizes, so select a model based on the anchor size and boat size listed in the specifications.
• What AnchorLift Bow Roller model should I choose for my boat? Model selection depends on boat size and anchor size. Model 90101 is for boats up to 20 feet and anchors up to 17 lbs., while 90102 through 90107 cover boats from 20 to 100 feet and anchors up to 264 lbs. Check the model specifications to select the appropriate size.
• What are the dimensions of the AnchorLift Self Launch Bow Roller models? The available models range from 16.5" to 49" in length and from 2.5" to 5.5" in width. Model 90101 measures 16.5" x 2.5", while the largest model, 90107, measures 49" x 5.5".
• How does the pivoting head on the AnchorLift Bow Roller work? The AnchorLift Bow Roller uses a hinged pivoting head designed to provide smoother self-launching operation. Its low-profile design and Delrin rollers support the self-launching bow roller's intended operation on compatible boat and anchor setups.
